Remove/install ashtray housing in front center console - AR68.20-P-2400LW

Model 205, 253 with code 301 (Package SMOKER)

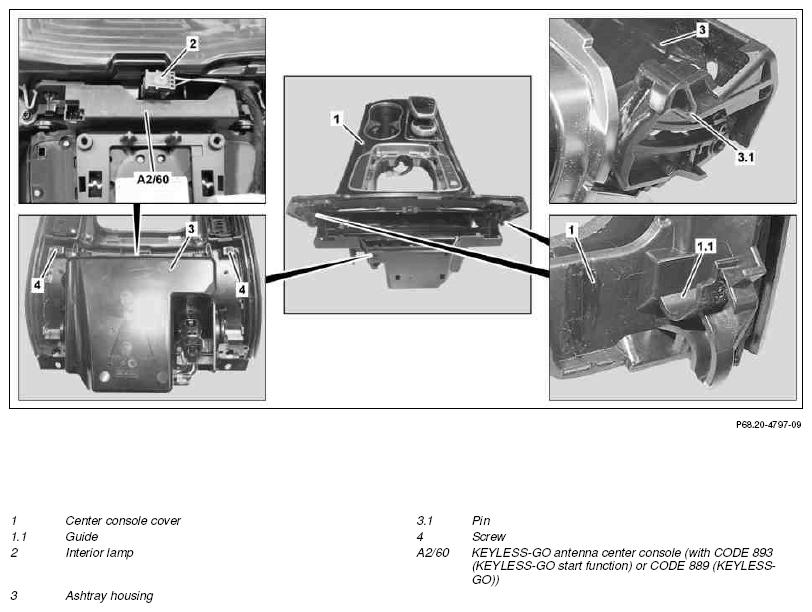

Fig 1: Identifying Center Console Ashtray Housing Remove/Install Components - Shown With Transmission 716

Courtesy of MERCEDES-BENZ USA

Shown with transmission 716 and code 889 (KEYLESS-GO)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center console cover (1)	Model 205 with transmission 722, 724, 725 with code 301 (Package SMOKER) Model 253 with transmission 724, 725 with code 301 (Package SMOKER)	AR68.20-P-2350LW
		Model 205, 253 with transmission 716 with code 301 (Package SMOKER)	AR68.20-P-2350LWA
2	Disconnect interior lamp (2) from optical fiber
3	Unscrew bolts (4) from ashtray housing (3)
4	Remove ashtray housing (3) from center console cover (1)	Insert ashtray housing (3) with pins (3.1) into guides (1.1) on center console cover (1).
5	Remove keyless go center console antenna (A260)	Model 205, 253 with code 301 (Package SMOKER) with code 889 (KEYLESS-GO) Model 205, 253 with code 301 (Package SMOKER) with code 893 (KEYLESS-GO) Only when replacing ashtray housing (3).
6	Install in the reverse order
