Remove/install armrest lid on center console - AR68.20-P-2370LW

Model 205, 253

Shown on model 205 with transmission 722

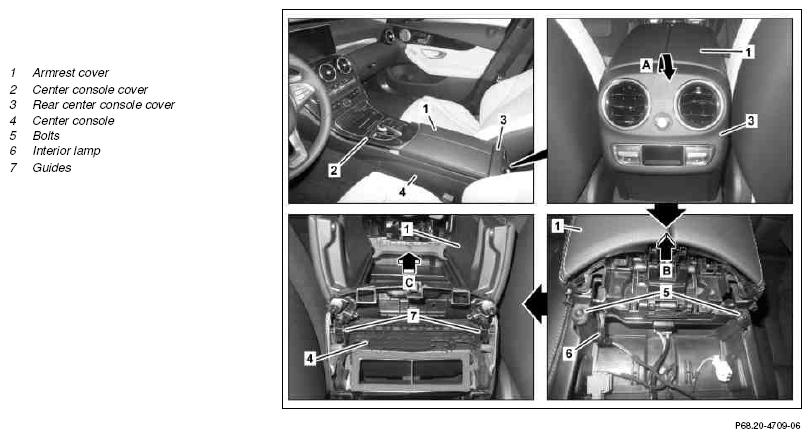

Fig 1: Identifying Center Console Armrest Lid Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console cover (2)	Model 205, 253 with transmission 716	AR68.20-P-2350LWA
		Model 205 with transmission 722, 724, 725 Model 253 with transmission 724, 725	AR68.20-P-2350LW
2	Open armrest cover (1)
3	Manually unclip rear center console cover (3) at top of armrest cover (1) (arrow A)
4	Disconnect interior lamp (6) from optical fiber
5	Remove screws (5)
6	Lift armrest cover (1) at front (arrow B) and move out of center console (4) toward front together with guides (7) (arrow C)
7	Install in the reverse order
