Remove, install roller sun blind - AR68.50-P-3400LW

MODEL 205.0/1 with CODE 540 (Electric sunblind for rear window)

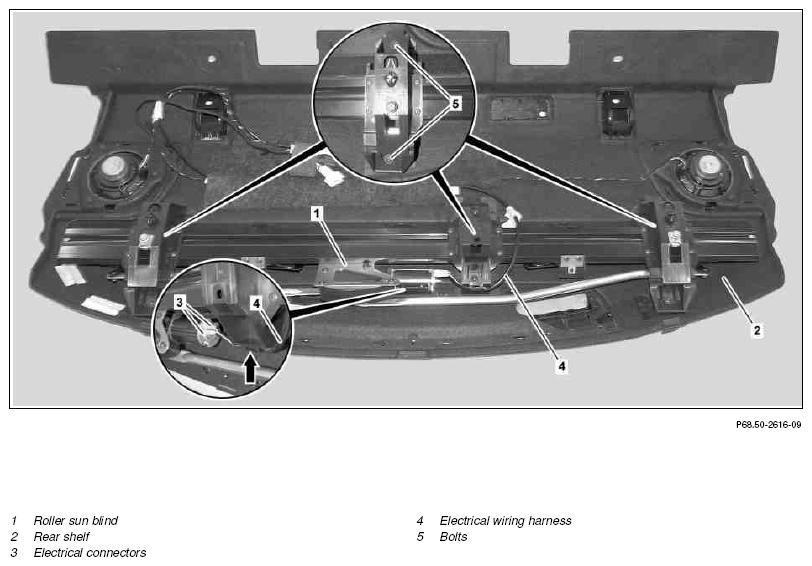

Fig 1: Identifying Roller Sun Blind Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear shelf (2)		AR68.30-P-4581LW
2	Mark electrical connectors (3)
3	Disconnect electrical connectors (3)	Observe marking.
4	Unhook electrical wiring harness (4) from bracket (arrow) and remove from working area
5	Remove bolts (5)
6	Remove roller sun blind (1)	Ensure that roller sun blinds (1) are seated correctly in rear shelf (2).
7	Install in the reverse order
