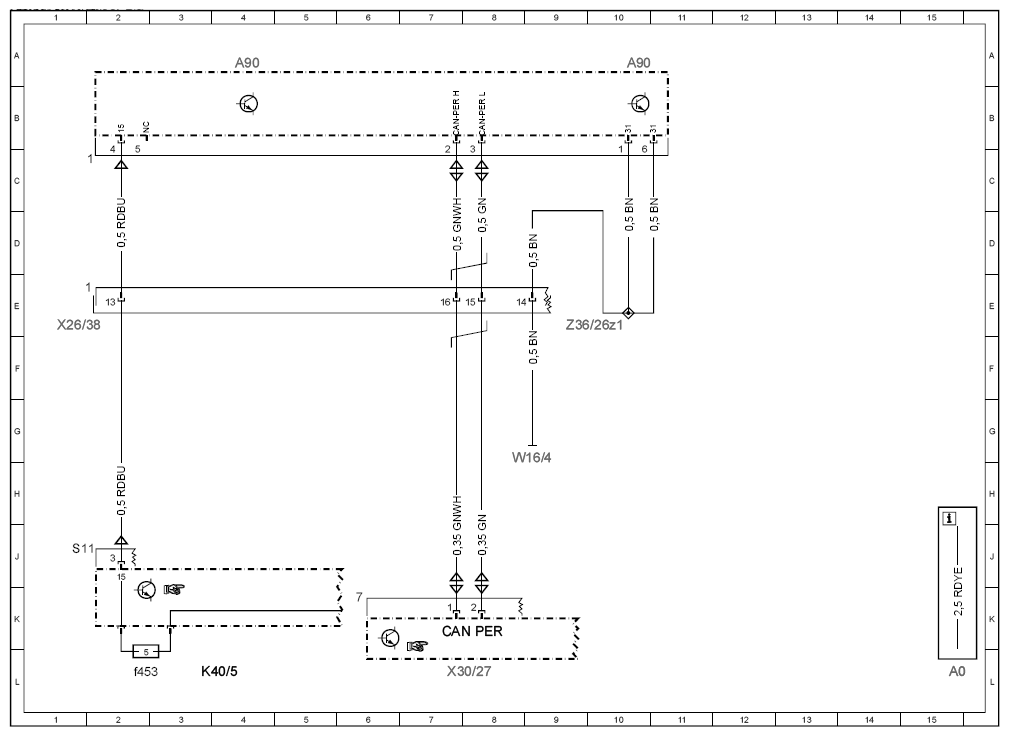

Wiring diagram for COLLISION PREVENTION ASSIST control unit - PE30.30-P-2104-97FBA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 4A |
| A90 | COLLISION PREVENTION ASSIST controller unit | 10A |
| CAN PER | Peripherals CAN | 7K |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f453 | Fuse 453 | 2L |
| W16/4 | Right major assembly compartment ground point | 8H |
| X26/38 | Front bumper and frame wiring harness electrical connector | 1E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
| Z36/26z1 | DISTRONIC PLUS front ground line connector sleeve | 10E |
