Remove/install park pawl switch - AR26.19-P-0050NKE

MODEL 242 with ENGINE 780

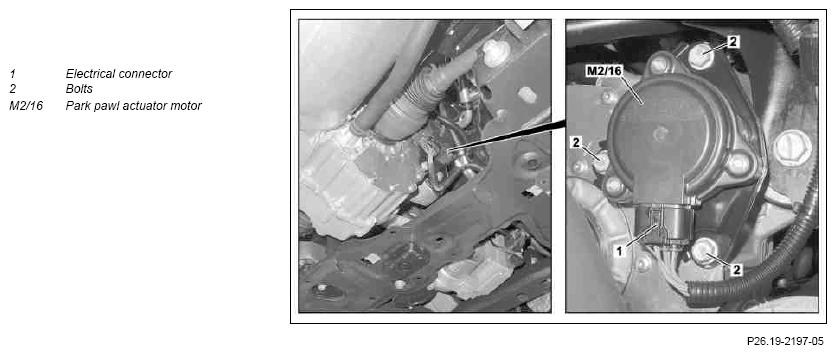

Fig 1: Identifying Park Pawl Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Raise vehicle with vehicle lift
2	Remove lower engine compartment paneling		AR61.20-P-1105NKB
3	Release and disconnect electrical connection (1) from park pawl switch (M2/16)
4	Remove bolts (2) and remove park pawl actuator motor (M2/16)	Bolt, actuator to transmission	*BA27.40-P-1003-01D
5	Install in the reverse order
6	Read out fault memory using diagnostic system, delete faults if necessary	When replacing park pawl actuator motor (M2/16).
			AD00.00-P-2000-04A

HOUSING

Number	Designation		MODEL 242 with ENGINE 780
BA27.40-P-1003-01D	Bolt, actuator to transmission	Nm	27
