Remove/install rear seat cushion - AR91.12-P-1020NKC

MODEL 117, 156, 176, 242

MODEL 246 without CODE 248 (Rear seat with integrated child seat) without CODE U57 (EASY-VARIO-PLUS-system)

Shown on MODEL 246

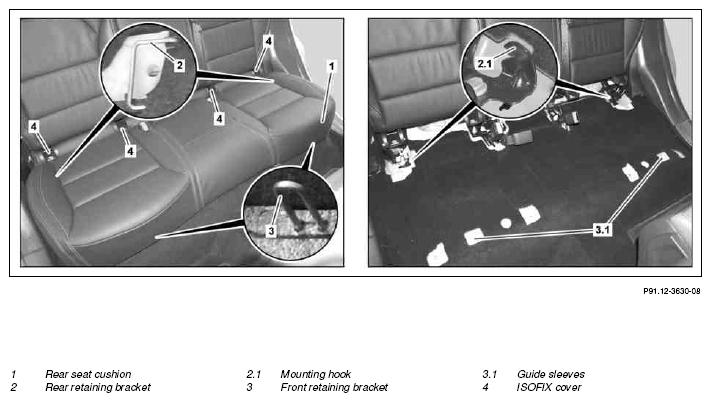

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move both front seats forwards
2	Unclip Isofix covers (4)	MODEL 117, 156, 176
3	Pull rear seat cushion (1) with front retaining brackets (3) upwards out of the guide sleeves (3.1) and place upwards at an incline
4	Press inclined rear seat cushion (1) at the same time to the rear against the rear seat backrest, and unhook rear retaining brackets (2) from mounting hooks (2.1)
5	Pull rear seat cushion (1) forward and remove	Route the seat belt buckles through the rear seat cushion (1). Adjust rear seat cushion (1) again after installation and smooth out any folds in the seat cover.
6	Install in the reverse order
