Remove/install lower pendulum support - AR22.10-P-1130NKE

MODEL 242 with ENGINE 780

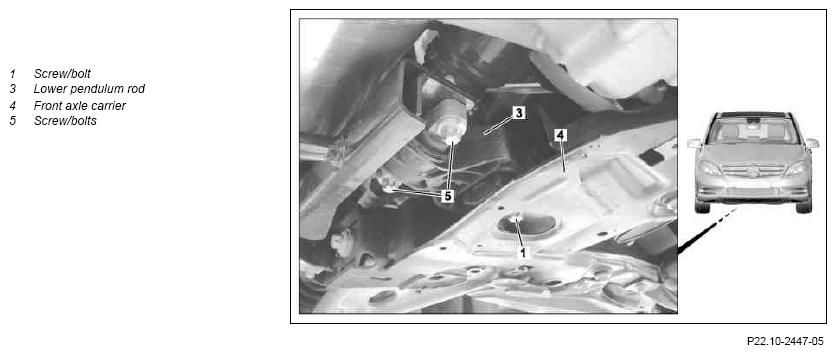

Fig 1: Identifying Lower Pendulum Support Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Remove rear section of lower engine compartment paneling		AR61.20-P-1105NKB
2	Remove screw/bolts (5) on lower pendulum rod (3)	Screw/bolt, pendulum rod at top to bearing bracket	*BA22.10-P-1002-03L
3	Remove screw/bolt (1) on front axle carrier (4)	Screw/bolt, pendulum rod at top to bearing bracket	*BA22.10-P-1002-03L
4	Press engine by hand in direction of vehicle front and remove lower pendulum rod (3) downwards
	Check
5	Check lower pendulum rod (3) and replace if necessary
6	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		ENGINE 780 in MODEL 242
BA22.10-P-1002-03L	Screw/bolt, pendulum rod at top to bearing bracket	Nm	106
