Remove/install washer fluid reservoir of windshield washer system - AR82.35-P-6000NKB
MODEL 117, 156, 176, 242, 246
Shown on MODEL 246

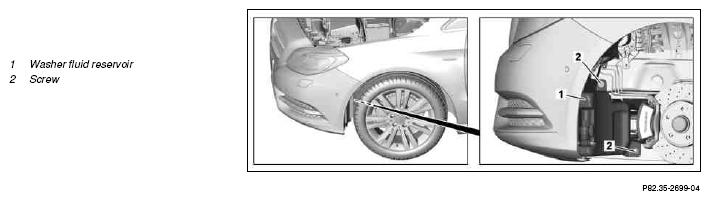

Fig 1: Identifying Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components - Shown On Model 246
Shown on model 246 with code 600 (Headlamp cleaning system)

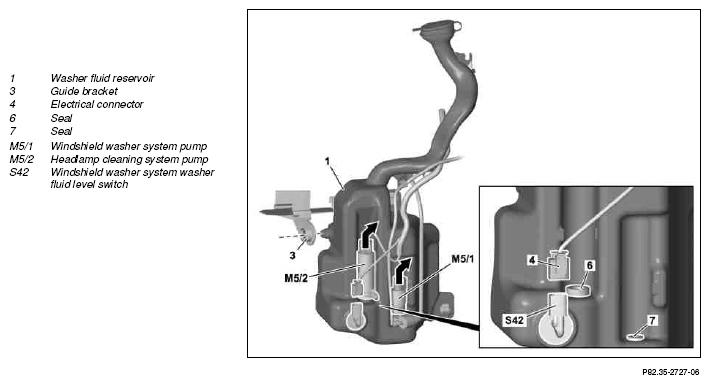

Fig 2: Identifying Washer Fluid Reservoir Of Windshield Washer System Remove/Install Components - Shown On Model 246 With Code 600
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000AK | |
| 2 | Turn the steering to the left | ||
| 3 | Remove left front fender liner | AR88.10-P-1300NKB | |
| 4 | Remove windshield washer system pump (M5/1) from washer fluid reservoir (1) without disconnecting electrical lines | ||
| Fig 3 | |||
| 5 | Check gasket (7) | For damage ↓ Replace seal (7) |
|
| 6 | Remove headlamp cleaning system pump (M5/2) from washer fluid reservoir (1) without disconnecting electrical lines | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) |
|
| Fig 3 | |||
| 7 | Check seal (6) | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) For damage ↓ Replace seal (6) |
|
| 8 | Disconnect electrical connector (4) from windshield washer system washer fluid level switch (S42) | ||
| 9 | Remove bolts (2) | ||
| 10.1 | Pull washer fluid reservoir (1) toward rear out of guide bracket (3) and remove toward bottom | Model 117, 176, 242, 246 | |
| 10.2 | Unhook washer fluid reservoir (1) upwards at fuse and relay module | Model 156 | |
| 11 | Install in the reverse order | ||
| 12 | Fill washer fluid reservoir (1) | ||
| AP82.35-P-8210AK | |||
| Check | |||
| 14 | Check windshield washer system for proper operation | ||
| AP82.30-P-8252AK | |||
| 15 | Check function of headlamp cleaning system | Model 117, 156, 242, 246 with code 600 (Headlamp cleaning system) Model 176 up to model year 2016 with code 600 (Headlamp cleaning system) |
|
| AP82.30-P-8252AK |
