Remove/install radial shaft sealing ring on electric motor - AR08.10-P-0050NKE
ENGINE 780 in MODEL 242
MODIFICATION NOTES
| 3.12.15 | Replace special tool | Operation step 5 | |
| 17.7.15 | Capacity | BF08.10-P-1001-02A |
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Remove | |||
| 1 | Remove front axle shaft at left or right | AR33.30-P-0620NKB | |

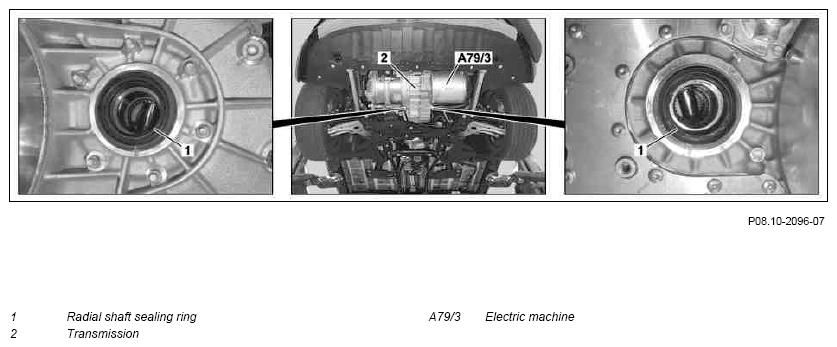

| 2 | Using a suitable tool, lever out radial shaft sealing ring (1) on transmission (2) of electrical machine (A79/3) | The contact surface will be damaged otherwise and the electrical machine (A79/3) must be replaced. |
|
| Clean | |||
| 3 | Clean contact surfaces of radial shaft sealing ring (1) on transmission (2) | ||
| Install | |||
| 4 | Lightly coat outer contact surface and sealing lips on the radial shaft sealing ring (1) with oil | ||
| 5 | Drive in new radial shaft sealing ring (1) flush using a drift | Fig 2 | |
| 6 | Install front axle shaft at left or right | AR33.30-P-0620NKB | |
| 7 | Check oil level on transmission (2) for electrical machine (A79/3); correct if necessary | AR08.10-P-0010-01NKE | |
| *BF08.10-P-1001-02A | |||
| 8 | Warm up vehicle to operating temperature with a test drive | ||
| 9 | Check area around the radial shaft sealing ring (1) for leaktightness |
FILLING CAPACITIES FOR TRANSMISSION ELECTRIC MOTOR
| Number | Designation | Electric motor 780 | ||
|---|---|---|---|---|
| BF08.10-P-1001-02A | Filling capacity | Initial charge | Liter | ≈1, 7 |
