Cavity preservation following repair work - AR97.20-P-1500NKB

MODEL 176, 242, 246

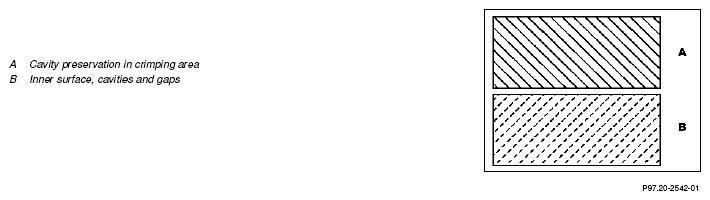

The following differentiation is made for cavity preservation:

Fig 1: Identifying Cavity Preservation In Crimping Area

Courtesy of MERCEDES-BENZ USA

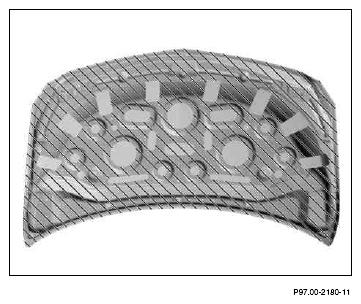

Engine hood, shown on model 246

Fig 2: Identifying Engine Hood Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

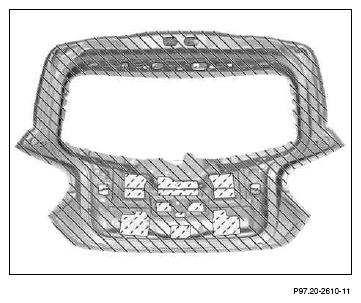

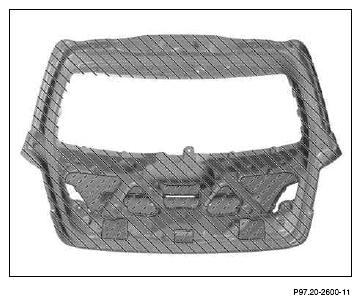

Liftgate, MODEL 176

Fig 3: Identifying Liftgate Cavity Preservation Repair Work Area - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

Liftgate, shown on 246

Fig 4: Identifying Rear-End Door - Shown On Model 246.2

Courtesy of MERCEDES-BENZ USA

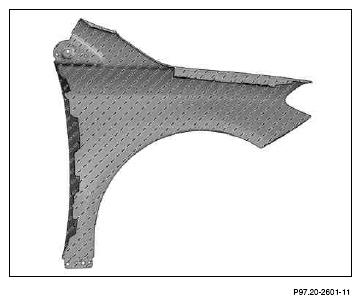

Front fender, shown on MODEL 246

Fig 5: Identifying Front Fender Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

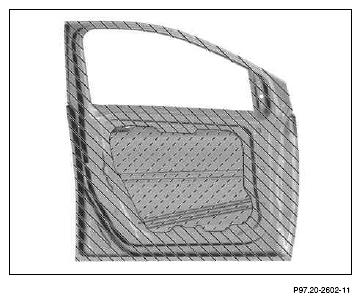

Front door, shown on MODEL 246

Fig 6: Identifying Front Door Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

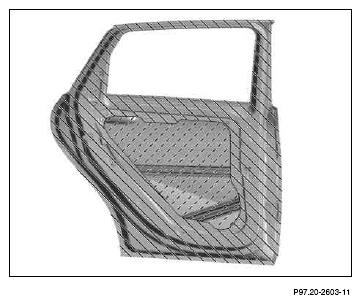

Rear door, shown on MODEL 246

Fig 7: Identifying Rear Door Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

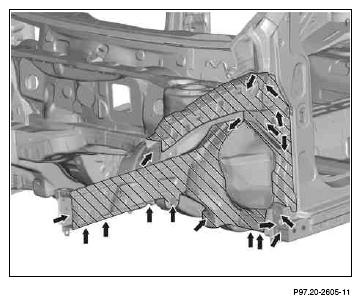

Front longitudinal member, shown on model 246

Fig 8: Identifying Front Longitudinal Member Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

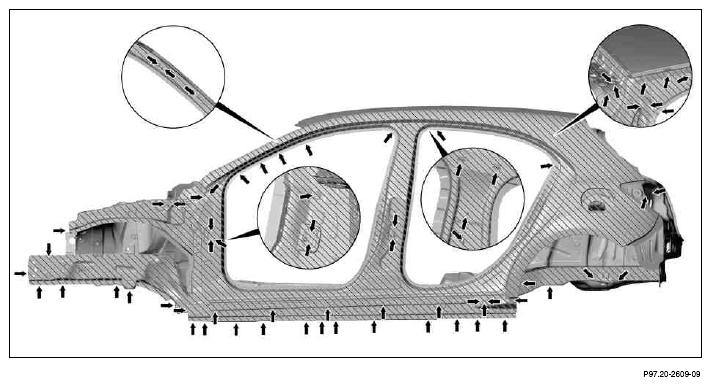

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member, MODEL 176

Fig 9: Identifying Upper Longitudinal Member Cavity Preservation Repair Work Area - Shown On Model 176

Courtesy of MERCEDES-BENZ USA

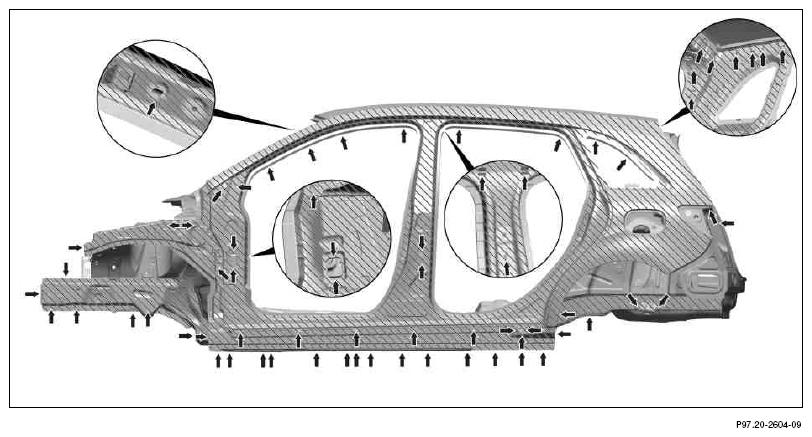

Upper front longitudinal member, A-pillar, B-pillar, C-pillar, side wall paneling and bottom side longitudinal member, shown on MODEL 246

Fig 10: Identifying Upper Longitudinal Member Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

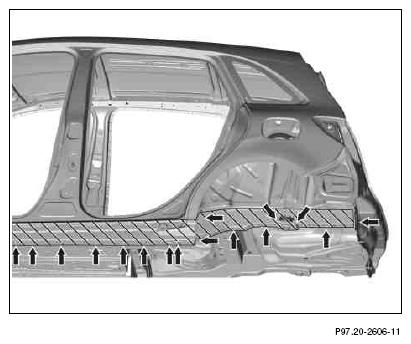

Rear longitudinal member, shown on model 246

Fig 11: Identifying Rear Longitudinal Member Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

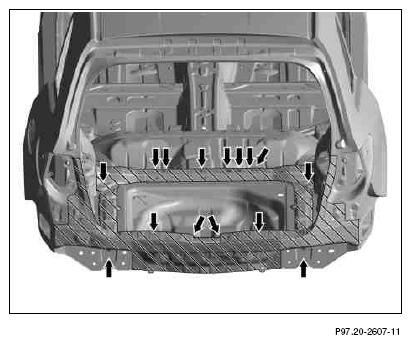

Rear end assembly, shown on model 246

Fig 12: Identifying Rear End Assembly Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

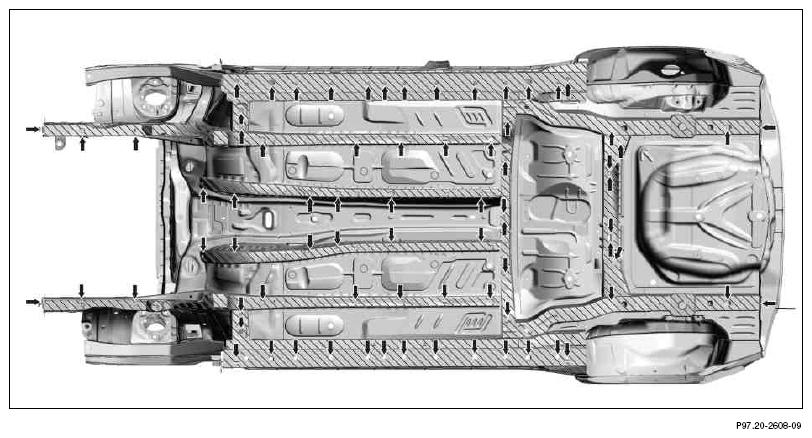

Underfloor, shown on model 246

Fig 13: Identifying Underfloor Cavity Preservation Repair Work Area - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection agents into flames or onto hot objects; keep well away from all potential sources of ignition. Work in well-ventilated areas; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
A	Hohlraumkonservierung in Falzbereichen	Install from inside through openings (arrows) with hook probe. Apply cavity preservation with spraying hose and nozzle (spraying angle 360°) as far as possible into cavities.
A	Hohlraumkonservierung in Falzbereichen	Cavity preservation, solvent-free (1 l container)	BR00.45-Z-1003-05A
B	Inner surfaces, cavities and crevices	Uniformly moisten cavity preservation.
B	Inner surfaces, cavities and crevices	Cavity preservation, solvent-free (1 l container)	BR00.45-Z-1003-05A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
