Retrofit COMAND Online incl. DVD changer - AN82.85-P-0008NKK

MODEL 242.890 with CODE 531 (COMAND APS) without CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)

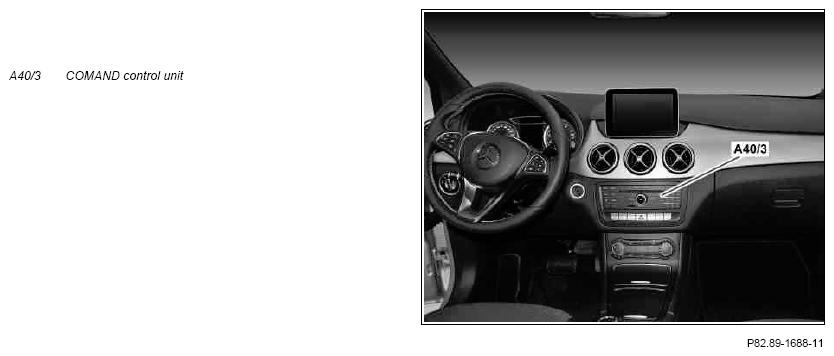

Fig 1: Identifying Comand Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove COMAND controller unit (A40/3) (COMAND APS)
			AR82.60-P-7502NKB
		The removed COMAND controller unit (A40/3) (COMAND APS) is no longer required.
	Install
2	Install new COMAND controller unit (A40/3) (COMAND Online incl. DVD changer)
			AR82.60-P-7502NKB
	Update Vehicle Documentation (VeDoc)
3	Delete special equipment in online vehicle data card	CODE 815 (Single DVD drive)
4	Enter special equipment in online vehicle data card	CODE 814 (DVD changer)
5	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008NKK " under field organization texts to design group 82
