Remove/install motor for roller sun blind on panoramic sliding roof - AR77.21-P-0490NKB
MODEL 246 with CODE 413 (Panoramic glass roof with top sliding roof)
MODEL 242 with CODE 413 (Panoramic glass roof with top sliding roof)
| Remove/install | |||
| 1 | Remove headliner | Always remove headliner completely. Lowering on one side only leads to the headliner buckling. A kink in the headliner remains visible and the headliner must be replaced. |
|

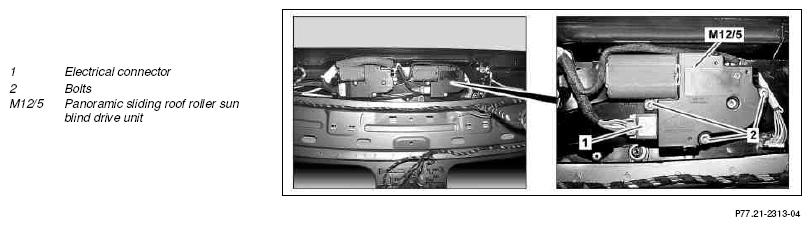

| 2 | Disconnect electrical connector (1) | ||
| 3 | Unscrew bolts (2) and remove panoramic sliding roof roller sun blind drive unit (M12/5) | ||
| 4 | Install in the reverse order | ||
| 5 | Connect Star Diagnosis, synchronize panoramic roof and perform teach-in run for anti-pinch protection for panoramic roof | ||
| AD00.00-P-2000-04A |
