Detach/Attach Ventilation Box - Ar83.10-D-0010-03SD (Climate Control - Testing & Repair - Model 906)

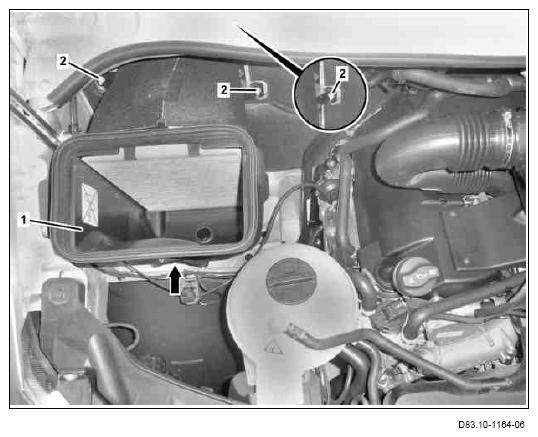

- Unscrew nuts (2).
- Pull ventilation box (1) away from bulkhead and remove upwards from guide (arrow).
- Install in the reverse order.
Courtesy of MERCEDES-BENZ USA
