Check Brake Hoses For Damage - AP00.20-D-0051-01H

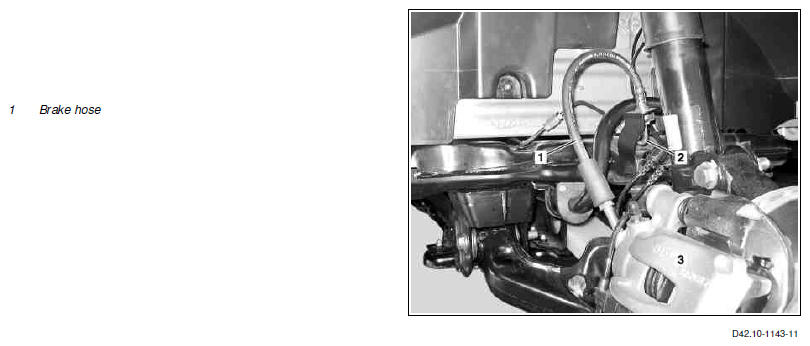

  1. Check brake hose (1) for porosity, chafing points, breakovers and corrosion.

    IMPORTANT If any damage or defects are found:

    Replace brake hoses subject to a separate repair order.

    G10884465Courtesy of MERCEDES-BENZ USA
