Detach Cable Duct On Engine Wiring Harness And Fasten - Ar01.00-D-2411-01WE

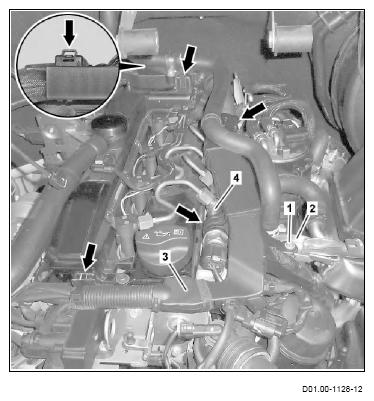

- Remove bolt (1) on bracket (2).
- Unclip engine wiring harness cable duct (3) at the shackle and on rail (4) (arrows).

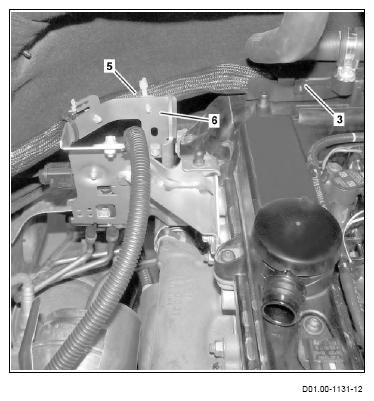

- Remove engine wiring harness (5) at bracket (6).
: Check cable tie for damage; replace if necessary.
- Slightly raise engine wiring harness cable duct (3).
Handle engine wiring harness cable duct (3) with care. Damage to the engine wiring harness (5) and the electrical connection may occur otherwise.
- Fasten in reverse order
