Tightening Procedure For Exhaust Gas RECIRCULATION Cooler - Ar14.20-S-7665-01SJ
MODEL 906 with ENGINE 651
EXHAUST GAS RECIRCULATION
| Number |
Designation |
ENGINE 651 in MODEL 906 |
| BA14.20-N-1003-01H |
Bolt, exhaust gas recirculation cooler to bypass flap |
Nm |
10 |
Courtesy of MERCEDES-BENZ USA

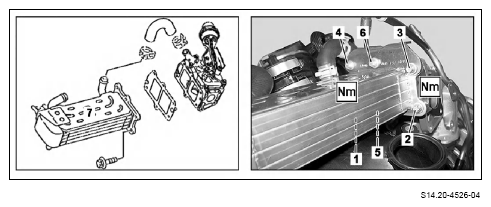

- Screw in screw/bolts for exhaust gas recirculation cooler (7) as per numerical tightening sequence (1 to 6) and tighten
.
MODEL 906 with ENGINE 651
To do this use a
set of flexible head wrenches.
 Courtesy of MERCEDES-BENZ USA
|
