Tightening Procedure For Throttle Valve Actuator - Ar09.41-S-1330-01E

Engine 651 in model 906

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 651 in model 906
BA09.41-N-1016-01M	Screw/bolt, charge air pipe with throttle valve actuator/intermediate flange to charge air line	Nm	10

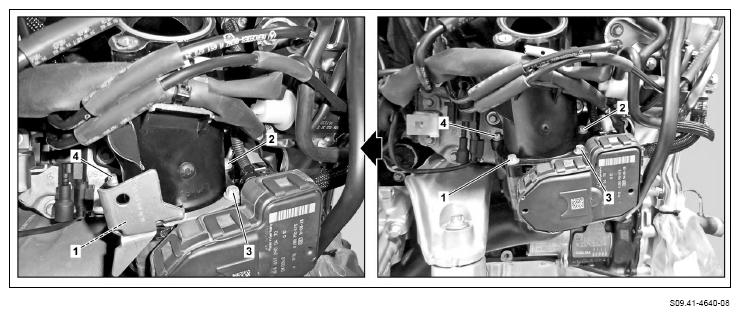

Fig 1: Tightening Sequence

Courtesy of MERCEDES-BENZ USA

Tighten screw/bolts (1, 2 3, 4) of throttle valve actuator in numerical sequence .
The listed tightening procedure must be observed. Otherwise the charge air line can be put under tension.
