Replace Sealing Ring - Ar09.41-D-8619-01WE

Engine 651 in model 906

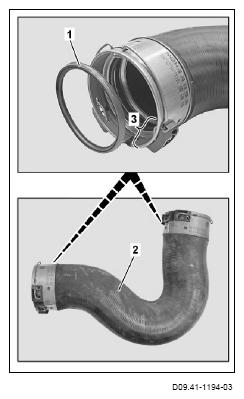

1. Remove sealing rings (1) from the grooves of the charge air hose (2).
2. The connection fitting (3) and grooves of the charge air hose (2) with clean, lint-free rags carefully.

   Courtesy of MERCEDES-BENZ USA

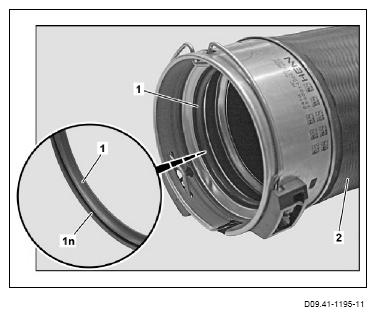

3. Insert new sealing rings (1) into the grooves of the charge air hose (2).

   Observe installation position and do not insert new sealing rings (1a) twisted. Do not apply any oil, grease or other lubricant.

   Leakage can occur otherwise or the charge air hose (2) can slip on the connection fitting.

   The circumferential groove (1n) in the sealing rings (1a) must point outwards.

   Courtesy of MERCEDES-BENZ USA
