Remove/Install Pressure Transducer For WASTEGATE Aneroid Capsule - Ar09.40-D-1005WE
ENGINES 651.955/957 in MODEL 906
| Remove/install | - | - | |
| 1 | Remove glow output stage | - | AR15.20-D-4500WE |

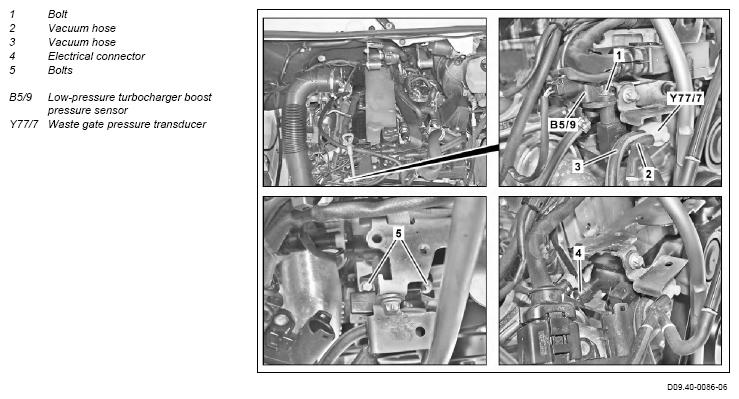

| 2 | Remove bolt (1) and place low-pressure turbocharger boost pressure sensor (B5/9) to one side | - | - |
| 3 | Detach vacuum hoses (2, 3) | of the vacuum hoses (2, 3). Check vacuum hoses (2, 3); replace if necessary. |
- |
| 4 | Disconnect electrical connector (4) on wastegate pressure transducer (Y77/7) | - | - |
| 5 | Remove bolts (5) and wastegate pressure transducer (Y77/7) | - | - |
| 6 | Install in the reverse order | - | - |
| 7 | Connect Star Diagnosis and perform initialization | AD00.00-D-2000-04SD |
