Remove/Install Charge Air Temperature Sensor - Ar09.41-D-2002WE

ENGINES 651.955/956/957 in MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install	-	-
1	Lift/jack up vehicle	-	AR00.60-D-1000H

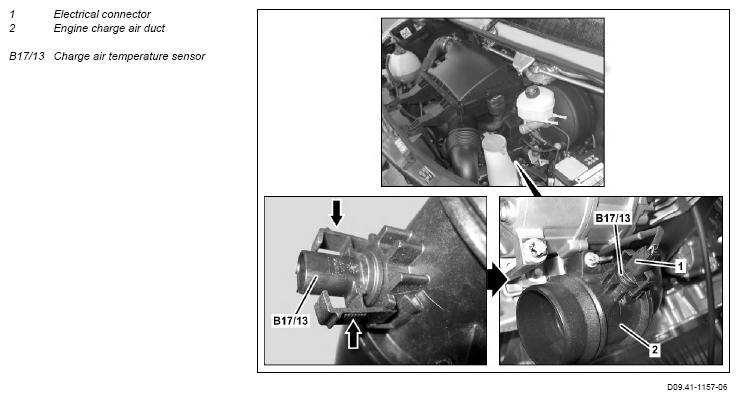

2	Disconnect electrical connector (1) from charge air temperature sensor (B17/13)	The electrical connector (1) also, at the time, secures the snap-in bracket on the charge air temperature sensor (B17/13).	-
3	Press snap-in bracket together (arrows) and release charge air temperature sensor (B17/13) from the mount	To not engage or disengage the charge air temperature sensor (B17/13) with the put on electrical connection (1). The snap-in bracket may be overstretched otherwise. Always replace charge air temperature sensor (B17/13) with defective snap-in brackets.	-
4	Remove charge air temperature sensor (B17/13) from the engine charge air duct (2)	Replace sealing ring.	-
5	Install in the reverse order	-	-
