Remove/Install Charge Air Duct Downstream Of Charge Air Cooler - Ar09.50-D-8680WE
ENGINES 651.955/956/957 in MODEL 906
| Remove/install | - | - | |

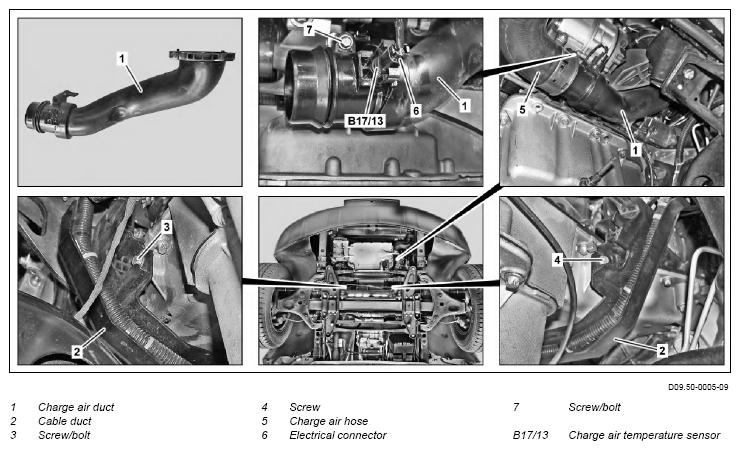

| 1 | Remove charge air manifold | - | AR09.41-D-8681WE |
| 2 | Remove screws/bolts (3, 4) and lower cable duct (2) | - | - |
| 3 | Remove charge air hose (5) at charge air duct (1) | - | AR09.41-D-1311-01WE |
| 4 | Disconnect electrical connector (6) on charge air temperature sensor (B17/13) and expose electrical wiring harness | - | - |
| 5 | Unscrew screw/bolt (7) | *BA09.41-N-1018-01M | |
| 6 | Remove charge air duct (1) | - | - |
| 7 | Remove charge air temperature sensor (B17/13) | Then replacing the charge air duct (1). |
- |
| 8 | Install in the reverse order | - | - |
| 9 | Risk of accident
caused by vehicle starting off by itself when engine is running. Risk of injury
caused by contusions and burns during starting procedure or when working near the engine as it is running Perform an engine test run and check charge air system in the area of the charge air duct (1) for leaks |
Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA09.41-N-1018-01M | Screw/bolt, charge air manifold to bracket | Nm | 9 |
