Remove/Install Aneroid Capsule For Boost Pressure Control Flap - Ar09.40-D-1002-01WE

WARNING Warning Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A

Engine 651.955/957 in model 906

TURBOCHARGER

Number Designation Engine 651 in model 906
BA09.40-N-1009-01R Vacuum unit fastening nut on bracket/M6 turbocharger Nm 9
Fig 1: Hand Vacuum Pump (001 589 73 21 00)
G13186586Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1027-07A "Yellow" locking paint Lackfabrik Bader GmbH & Co. KG
Dieselstrasse 34
73734 Esslingen
Germany
Tel.: +49 711 381607
Fax. +49 711 383092

Remove

  1. Remove black-red vacuum hose (1) from the boost pressure control flap diaphragm capsule (2).
  2. Loosen nut (5).
  3. Remove nut (4) from the control rod (3).
  4. Remove nuts (6) from the boost pressure control flap diaphragm capsule (2).
  5. Remove boost pressure control flap aneroid capsule (2).

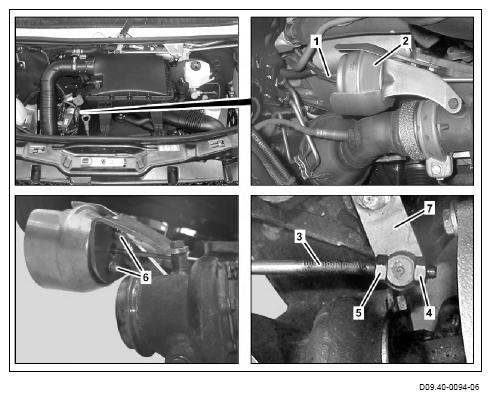

    G13186587Courtesy of MERCEDES-BENZ USA

    Install

  6. Bring boost pressure control flap aneroid capsule (2) into the installation position.

    IMPORTANT To do this, insert insulating washer/sleeve between the boost pressure control flap diaphragm capsule (2) and the bracket and guide the control rod (3) through the hole in the mounting bolt of the lever (7).

  7. Attach boost pressure control flap diaphragm capsule (2) with nuts (6) to the bracket TORQUE SPECIFICATION .

    Adjust

  8. Turn nut (5) in the direction of the diaphragm capsule boost pressure control flap (2).

    IMPORTANT in order to achieve the necessary clearance of the control rod (3).

  9. SPECIAL TOOL Attach hand vacuum pump to the boost pressure control flap diaphragm capsule (2).
  10. Actuate boost pressure control flap diaphragm capsule (2) with SPECIAL TOOL manual vacuum pump until control rod (3) is at end stop.

    If a new boost pressure control flap diaphragm capsule (2) was installed, actuate it multiple times with a vacuum of at least 700 mbar.

  11. Press lever (7) to end stop in direction of boost pressure control flap diaphragm capsule (2) and hold.
  12. Attach nut (4) to the lever (7) with zero clearance up to end stop.
  13. Mark nut (4) and turn by exactly 3.5 revolutions on the thread in the direction of the lever (7).

    IMPORTANT The required pretension is achieved in this way.

  14. Secure control rod (3) with the nut (5) against the lever (7) and tighten the nut (5).

    IMPORTANT While doing so, counterhold the nut (4).

  15. SPECIAL TOOL Remove hand vacuum pump from the boost pressure control flap diaphragm capsule (2).
  16. Secure nuts (4, 5, 6) using temperature-resistant locking paint.
  17. Attach black-red vacuum hose (1) to the boost pressure control flap diaphragm capsule (2).
