Replace Charge Air Hose Upstream Of Charge Air Cooler - SM09.41-D-0006A
ENGINE 651 in MODEL 906
| Remove/install | - | - | |

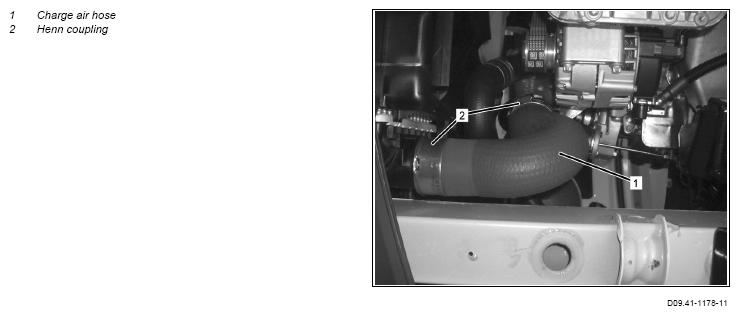

| 1 | Detach, replace charge air hose (1) | - | AR09.41-D-1311-01WE |
| 2 | Install in the reverse order | - | - |
| - | Flashing | - | - |
| 3 | Connect XENTRY DAS | - | - |
| 4 | Install CDI control unit software | 01/2011 with add-on 1713, 03/2011 with add-on 1714 to be used. As of XENTRY DAS version 05/2011 includes the flashware in the regular release. |
- |
| 5 | Disconnect XENTRY DAS | - |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A906 528 40 82 05 | Charge air hose | 1 |
