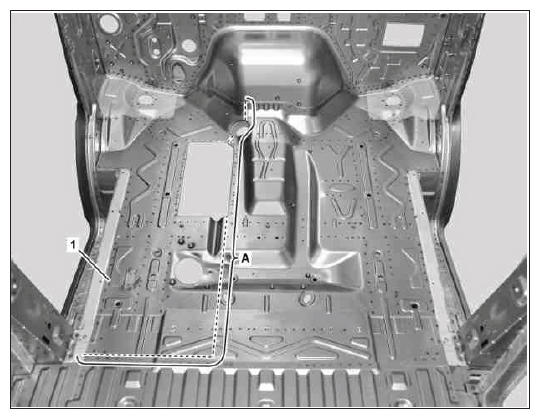

- Scribe cut on floor (1) and cut (area A).
Do not cut too deeply. Otherwise the components below can be damaged and weakened.
 Courtesy of MERCEDES-BENZ USA
|

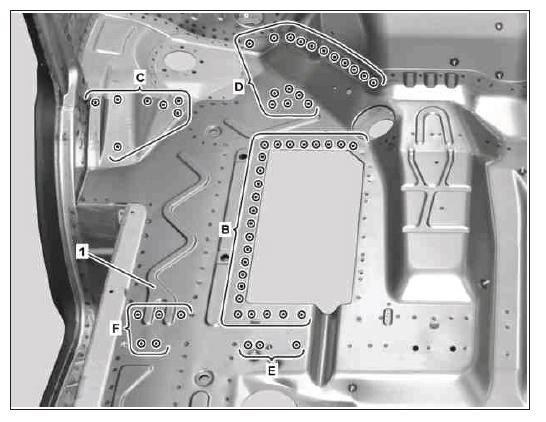

- Expose spot welds on floor (1) and cut out (areas B, C, D, E and F).
 Courtesy of MERCEDES-BENZ USA
|

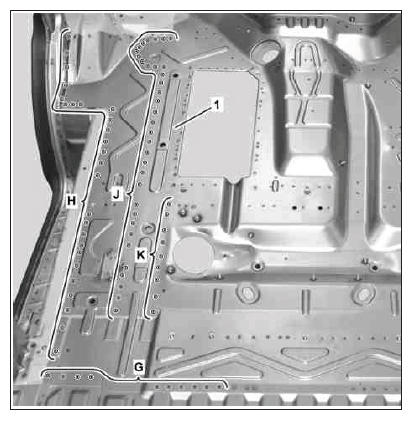

- Expose spot welds on floor (1) and cut out (areas G, H, J and K).
Cut out spot welds through two panel thicknesses (area G).
 Courtesy of MERCEDES-BENZ USA
|

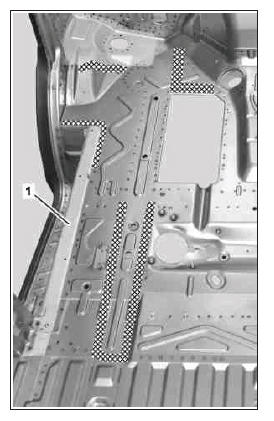

- Heat floor (1) in crosshatched area with heat gun.
Cross-hatched area is bonded.
- Remove damaged floor (1).
- Remove floor section (1) in area of rear floor.
 Courtesy of MERCEDES-BENZ USA
|

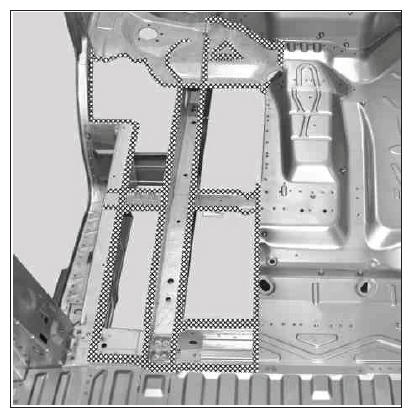

- Grind mating surfaces down to bare metal in the crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
- Remove shavings and drill chips.
- Coat insides of spot weld flanges with zinc dust paint.
Do not apply zinc dust paint to bonding surfaces. Otherwise adhesion problems may occur.
Observe pretreatment of bonding surfaces.
 Courtesy of MERCEDES-BENZ USA
|
