Install And Weld In Front Door In Cab Up To Firewall - Ar61.10-D-5720-07H

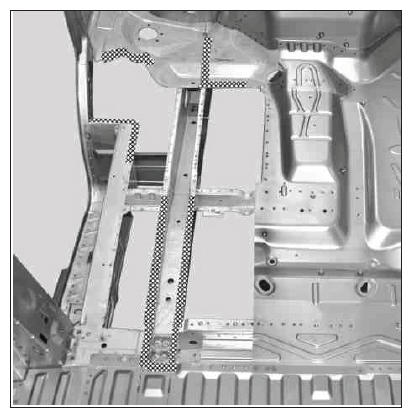

Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces.

refer to manufacturer specifications for adhesive curing and application times.

Courtesy of MERCEDES-BENZ USA
Install floor (1), fit and fix in place.

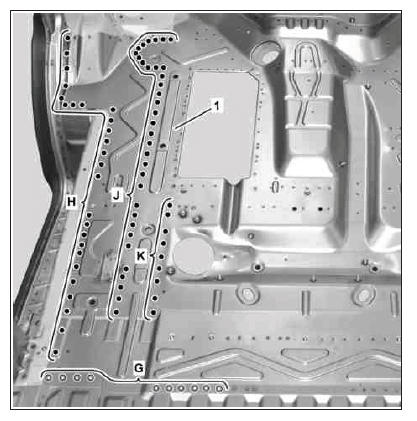

Floor (1) (areas H, J and K).
Floor (1) (area G).

Courtesy of MERCEDES-BENZ USA

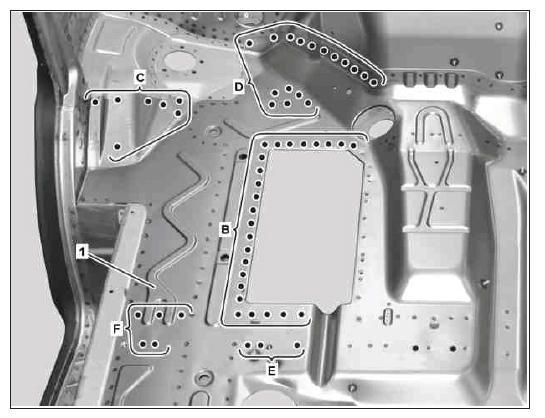

Floor (1) (areas B, C, D, E and F).

Courtesy of MERCEDES-BENZ USA

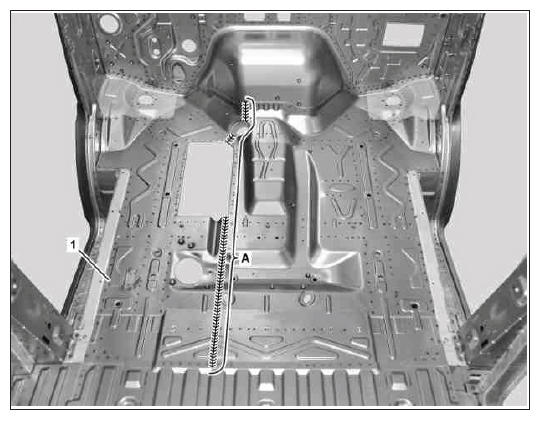

Floor (1) (area A).
Perform inert gas welding in intervals, allow to cool down in between, to prevent heat distortion.
Clean all weld joints.
Remove shavings and drill chips.

Courtesy of MERCEDES-BENZ USA
