Remove/Install Vacuum Pump - Ar43.05-D-1320WE
MODEL 906 with ENGINE 651.955/956/957
| Remove/install | |||
| 1 | Remove charge air duct to charge air cooler | AR09.50-D-8680WE | |

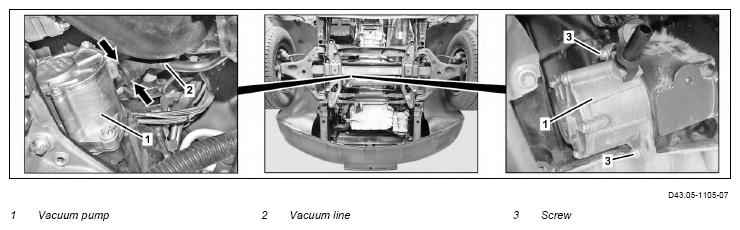

| 2 | Press in locking clips (arrows) and detach vacuum line (2) from vacuum pump (1) | ||
| 3 | Remove screws/bolts (3) | *BA43.05-N-1003-01B | |
| 4 | Remove vacuum pump (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Risk of accident
caused by vehicle starting off by itself when engine is running. Risk of injury
caused by contusions and burns during starting procedure or when working near the engine as it is running Carry out engine test run and check engine in the area of the vacuum pump (1) for leaks |
Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
VACUUM PUMP
| Number | Designation | Model 906 with engine 651 | |
|---|---|---|---|
| BA43.05-N-1003-01B | Vacuum pump to crankcase | Nm | 9 |
