Remove/Install TELMA Retarder - Ar43.40-D-1000C

MODEL 906 with CODE (PB2) Mastercode retarder VMC

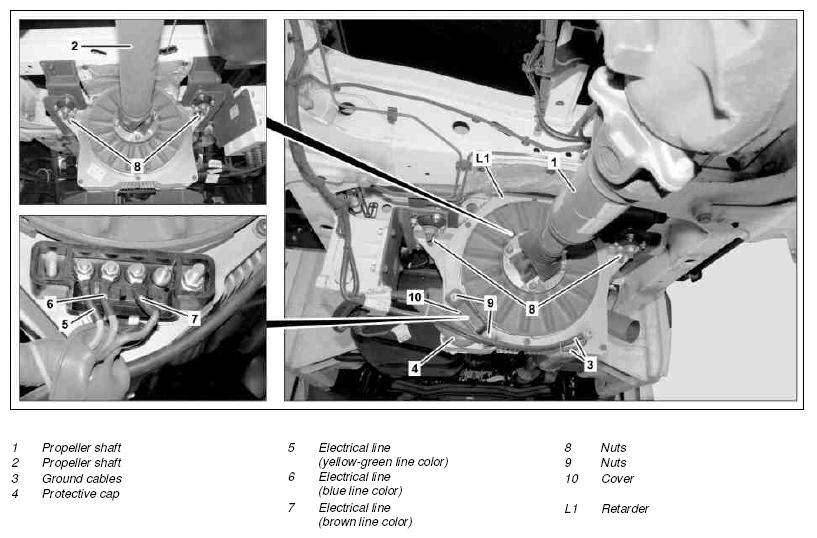

G10887659

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect ground lead from battery		AR54.10-D-0003SD
2	Lift/jack up vehicle		AR00.60-D-1000H
3	Detach drive shafts (1, 2) from retarder (L1) and fasten in place using cable ties	Mark installation position of front propeller shaft (2) relative to rear drive shaft (1) and retarder (L1). The universal joints of the drive shafts (1, 2) must not be offset to each other, but rather they must be synchronously installed. install new nuts.
			*BA41.10-N-1013-01B
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
4	Detach and expose ground lines (3) of retarder (L1)		*BA43.40-N-1007-01C
5	Detach cable tie from protective cap (4)
6	Remove protective cap (4)
7	Unscrew nuts (9) and remove covering (10)		*BA43.40-N-1005-01C
8	Detach and expose electrical lines (5, 6, 7) from retarder (L1)	Observe identification on electrical lines (5, 6, 7).
8			*BA43.40-N-1006-01C
9	Support retarder (L1) and secure using a tensioning strap	Transmission jack 0.5 t
10	Remove nuts (8) and lower retarder (L1)	Counterhold bolts. Replace bolts and nuts (8). Observe installation position of spring washers.
			*BA43.40-N-1001-01C
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
11	Lift retarder (L1) down from transmission plate using suitable lifting device	Only when replacing retarder (L1).
12	Install in the reverse order

PROPELLER SHAFT

Number	Designation				Model 906 without code ZG1/ZG2/ZG3/ZG4
BA41.10-N-1013-01B	Nut, drive shaft to retarder	M10X1	Stage 1	Nm	15
BA41.10-N-1013-01B	Nut, drive shaft to retarder	M10X1	Stage 2	∠°	90

RETARDER

Number	Designation			Model 906 with code PB2
BA43.40-N-1001-01C	Retarder to bracket	M8X25	Nm	22
BA43.40-N-1005-01C	Nut, cover of electrical connection to retarder	M8	Nm	5
BA43.40-N-1006-01C	Nut, electrical connection to retarder	M6	Nm	5
BA43.40-N-1007-01C	Nut, ground lines to retarder	M8X1.25	Nm	12
