Connect/Disconnect Tester At Brake Booster - Ar43.10-D-0024-01H

Fig 1: Vacuum Tester (201 589 13 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Test Connection (168 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

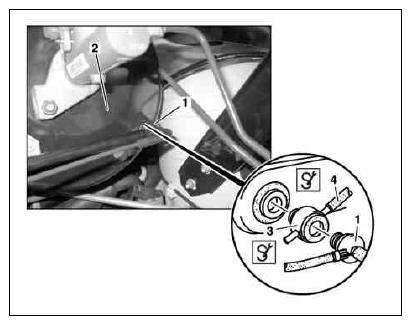

1. Detach check valve (1) from brake booster (2).
2. Install test connection (3) between brake booster (2) and check valve (1).
3. Fit vacuum tester (4) to test connection (3) .
4. Disconnection ensues in the reverse order.
