Replace Vacuum Line And Vacuum Reservoir - SM43.00-D-0003AK
MODEL 906.65# 1S as of 344389 up to 402071 with ENGINE 651
OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES
| Category | Op. no. | Operation text | Acc. no. | Code |
|---|---|---|---|---|
| O | 027048 | Check vacuum line | 4390188 | MASTERVAC |
| O | 027049 | Replace vacuum line and vacuum reservoir (after checking) | 4390188 | MASTERVAC |
| Checking | ||

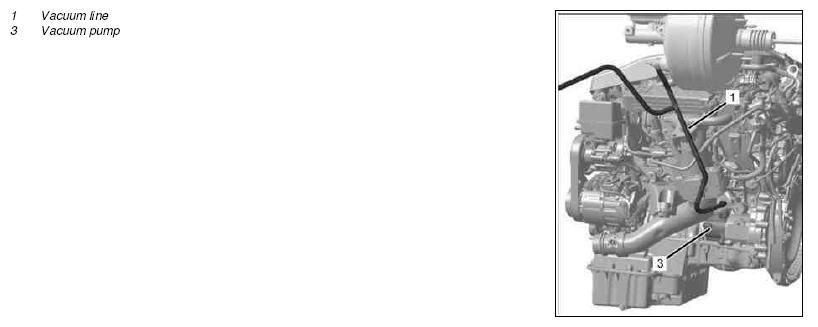

| 1 | Check vacuum line (1) | |
| Remove/install | ||
| 2 | Remove/replace vacuum line (1) | |
| 3 | Remove expanding clip of left wheelhouse lining to bumper | |

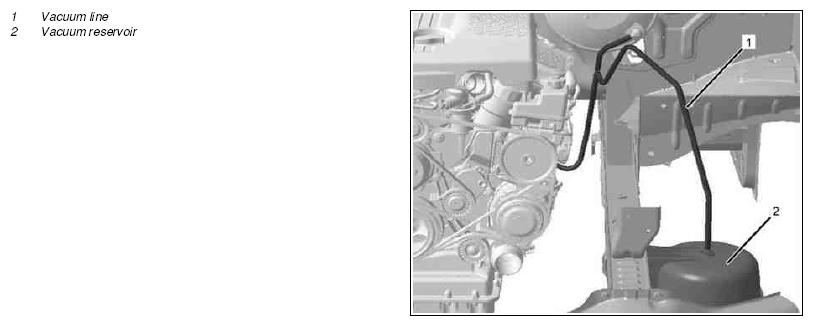

| 4 | Remove/replace vacuum reservoir (2) | |
| 5 | Install in the reverse order |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A 906 430 42 29 05 | Vacuum line | 1 |
| A 906 430 01 03 | Vacuum reservoir | 1 |
