Remove/Install Side Air Vent - Ar68.10-D-1100A
Model 906
| Remove/install | ||
| 1 | Unclip paneling from A-pillar | |

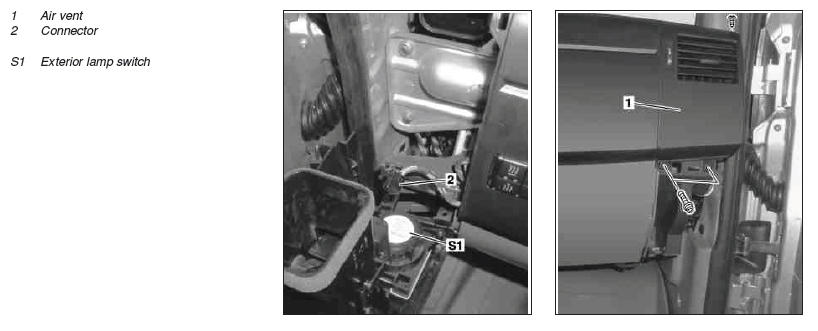

| 2 | Remove paneling below air vent (1). | |
| 3 | Unscrew bolts from air vent (1) and remove air vent | |
| 4 | Disconnect connector (2) from rotary light switch (S1) | Only on driver side |
| 5 | Disconnect connector from headlamp range controller | Only on driver side, except with code (LG0) Bi-xenon headlamp and code (CE2) Rear air suspension. |
| 6 | Install in the reverse order |
