Install B-Pillar Reinforcement - SM63.20-D-0009-02A

Model 906.1

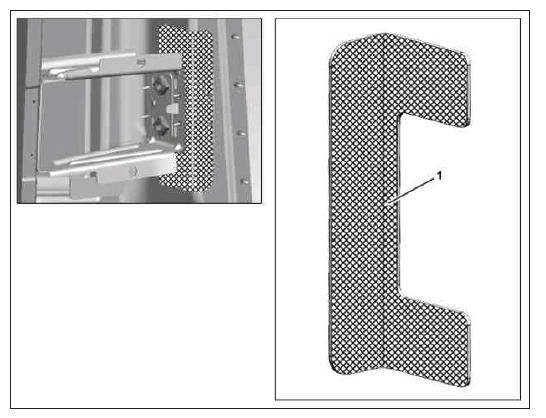

1. Clean bonding surfaces in the cross-hatched areas on the B-pillar panel and on the B-pillar reinforcement (1) using a cloth from the bonding kit.

   Clean bonding surfaces in one direction only.

2. Sand bonding surface in cross-hatched area on B-pillar reinforcement (1).

   Use a 60 grit sanding pad.

3. Sand bonding surface in cross-hatched area on B-pillar panel.

   Use a 60 grit sanding pad.

4. Again clean bonding surfaces in the cross-hatched areas on the B-pillar panel and on the B-pillar reinforcement (1) using a new cloth from the bonding kit.

   Clean bonding surfaces in one direction only.

   Courtesy of MERCEDES-BENZ USA

5. Apply adhesive in cross-hatched area on B-pillar reinforcement (1) and spread.

   Use a brush with plastic bristles.

   Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

   For reasons of clarity, the B-pillar is shown without the inner panel.

6. Position B-pillar reinforcement in installation position.
7. Fasten B-pillar reinforcement with bolts (2).

   The B-pillar reinforcement must lie on the B-pillar panel without gaps.

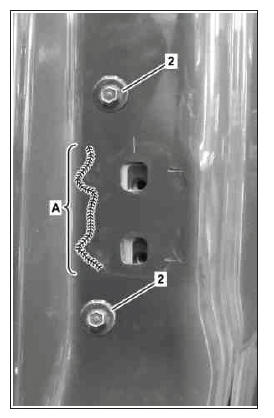

8. Crack in B-pillar panel (area A).

   If a crack is present.

9. Apply additional adhesive to the edges of the B-pillar reinforcement.

   Use a brush with plastic bristles.

   Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

   Courtesy of MERCEDES-BENZ USA

   The rest of the installation procedure can only be performed when the adhesive has completely cured.

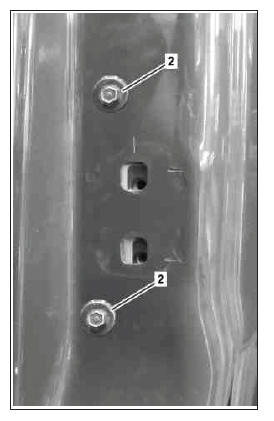

10. Unscrew bolts (2).
11. Close holes in B-pillar panel with adhesive and spread adhesive.

    Use a brush with plastic bristles.

    Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

    Courtesy of MERCEDES-BENZ USA

    The rest of the installation procedure can only be performed when the adhesive has completely cured.

12. Sand repair point flat.
13. Restore surface on B-pillar panel using basic putty.

    Observe manufacturer's specifications for the drying and processing time of the basic putty.
