Weld In Wheel Well Panel Front Section - Ar62.20-D-1280-03H

Courtesy of MERCEDES-BENZ USA

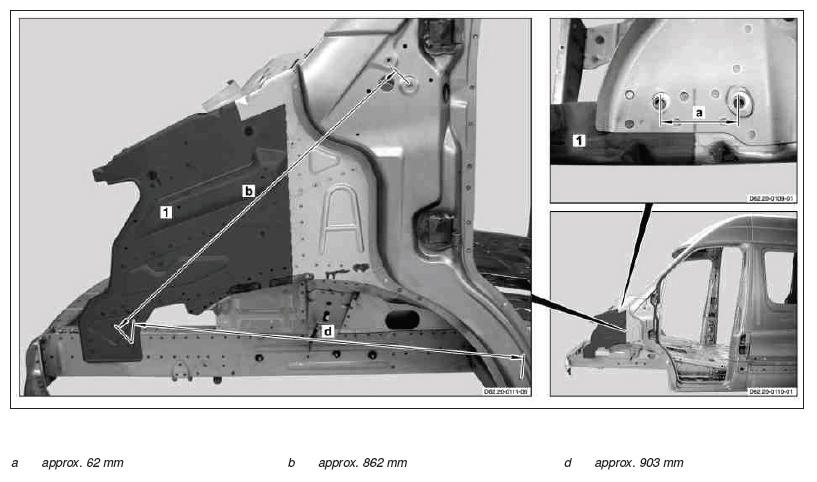

Dimensions:

The following operation steps are shown on the left side of the vehicle on model 906.733 and must be performed analogously on the right side in the event of damage.

1. Install wheel well paneling front section (1), fit and fix in place.

   Courtesy of MERCEDES-BENZ USA

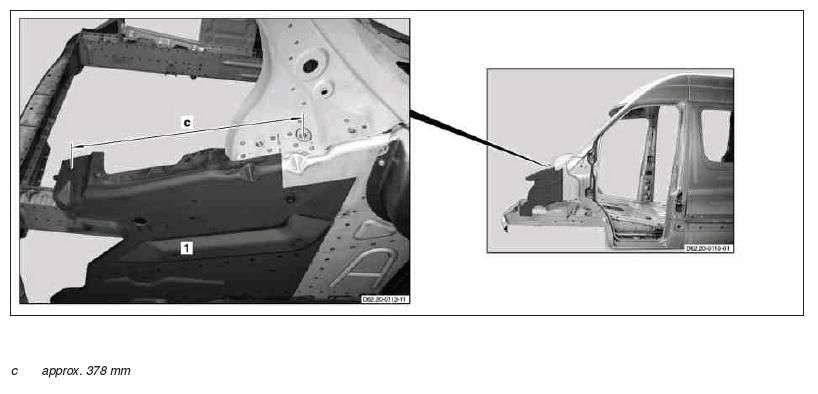

   Dimension:

   Courtesy of MERCEDES-BENZ USA

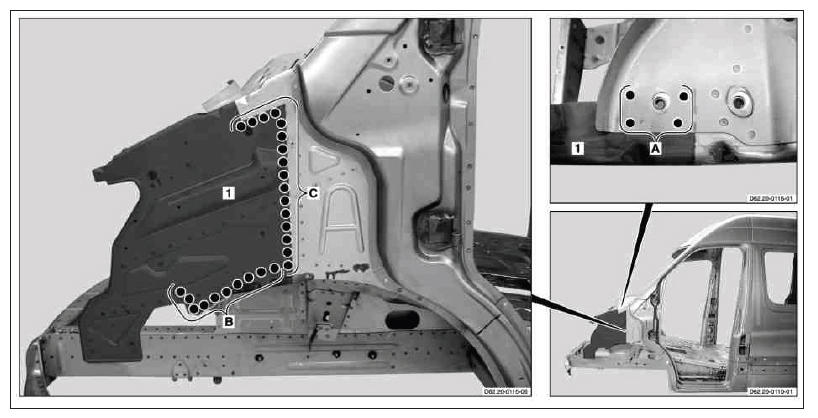

2. Wheel well paneling front section (1) (areas A, B and C).

   Courtesy of MERCEDES-BENZ USA

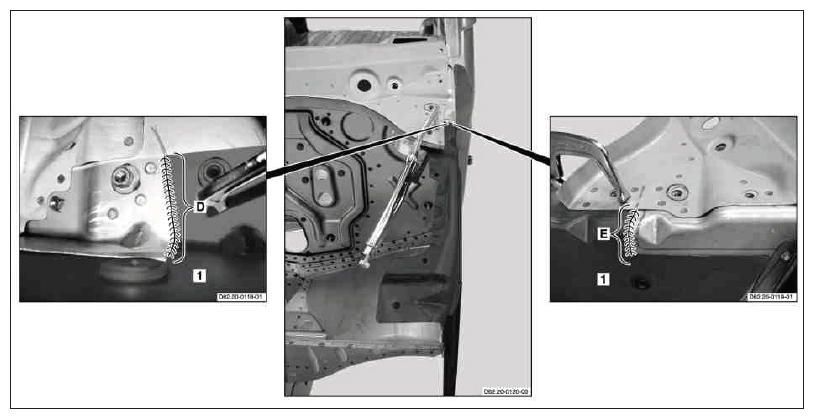

3. Wheel well paneling front section (1) (areas D and E).

   Weld wheel well paneling front section (1) from engine side from bottom (area D).
