Prepare Front Longitudinal Member To Passenger Compartment Floor Area - Ar62.20-D-1240-13HD
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-N-0001-01A |
Model 906 as of 5/31/17
with code CV1 (Pre-installation for winter service vehicle)
except code XL4 (Weight variant 5.500 kg)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |

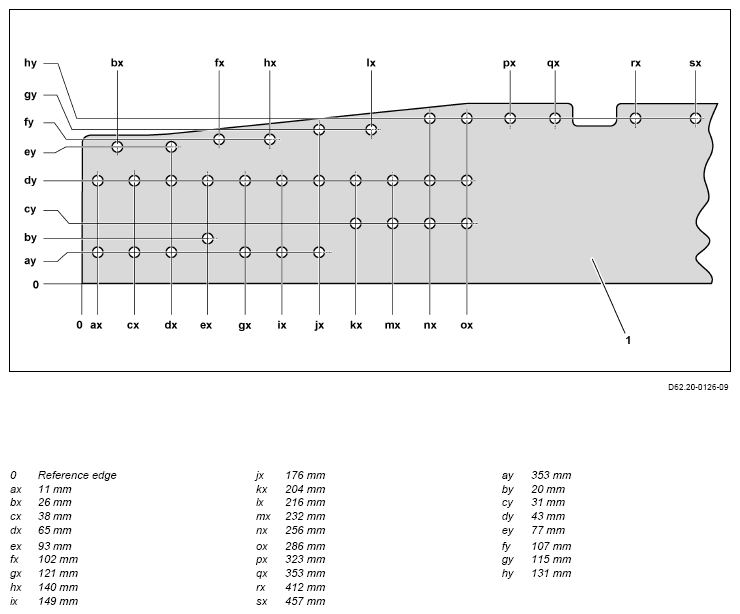

- Scribe holes according to drawing on front longitudinal member (1) on right and left, center punch and drill Ø 6 mm pilot hole and then drill with Ø 10 mm. Deburr holes.
Mark dimensions from references edges (0).
- Scribe dimensions according to drawing on front longitudinal member (1) on at bottom, center punch and drill Ø 6 mm pilot hole and then drill with Ø 10 mm.
Mark dimensions from references edges (0).
- Deburr holes.
The following operation steps are shown on the left component for model 906.733 and must be performed analogously on the right side in the event of damage.

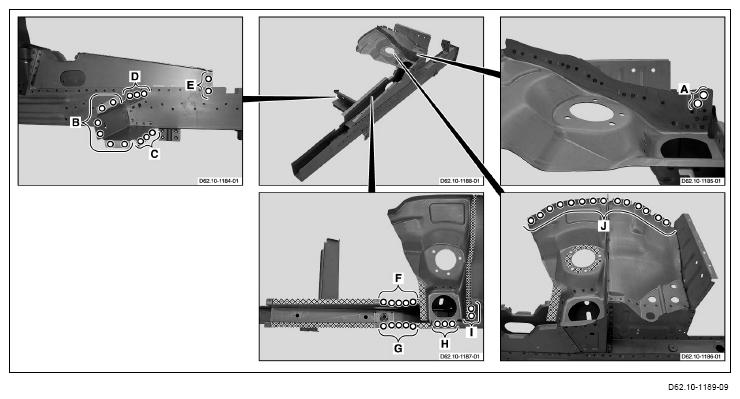

- Punch holes on front longitudinal with Ø 6 mm bit (areas A, B, C, D and J).
- Drill holes on front longitudinal member with Ø 7 mm bit (areas E, F, G, H and I).
- Grind mating surfaces on front longitudinal member down to bare metal in crosshatched areas.

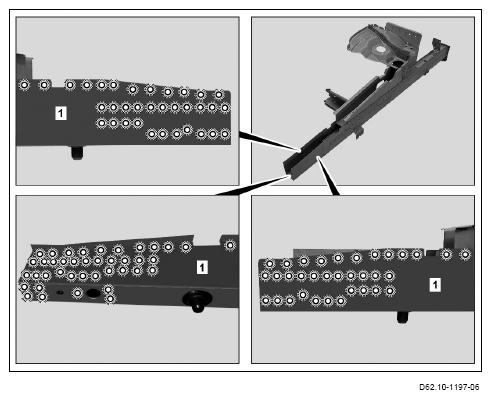

Sand down spot weld flanges to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.

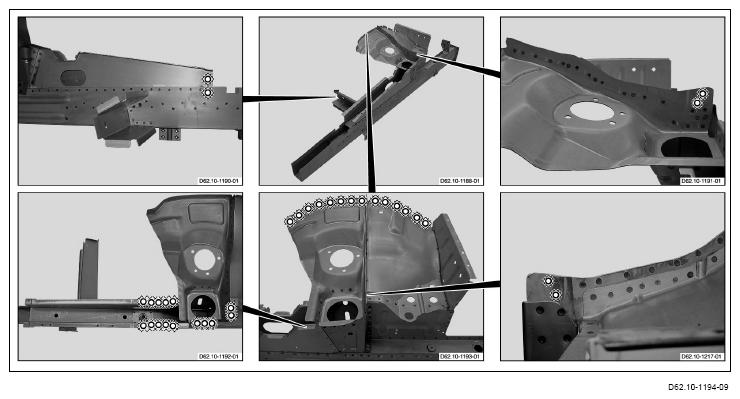

- Grind crosshatched areas on front longitudinal member down to bare metal around holes.
- Grind crosshatched areas on front longitudinal member (1) down to bare metal around holes.
