Prepare Front Longitudinal Member To Passenger Compartment Floor Area - Ar62.20-D-1240-13HC
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| General information on body repair | AH60.00-N-0001-01A |
Model 906 as of 5/28/16 up to 5/30/17
with code CV1 (Pre-installation for winter service vehicle)
except code XL4 (Weight variant 5.500 kg)
FRONT AXLE DAMPER STRUT
| Number | Designation | Model 906 | ||
|---|---|---|---|---|
| BA32.25-N-1004-02A | Nut, strut to support bushing | M16x1.5 | Nm | 90 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |

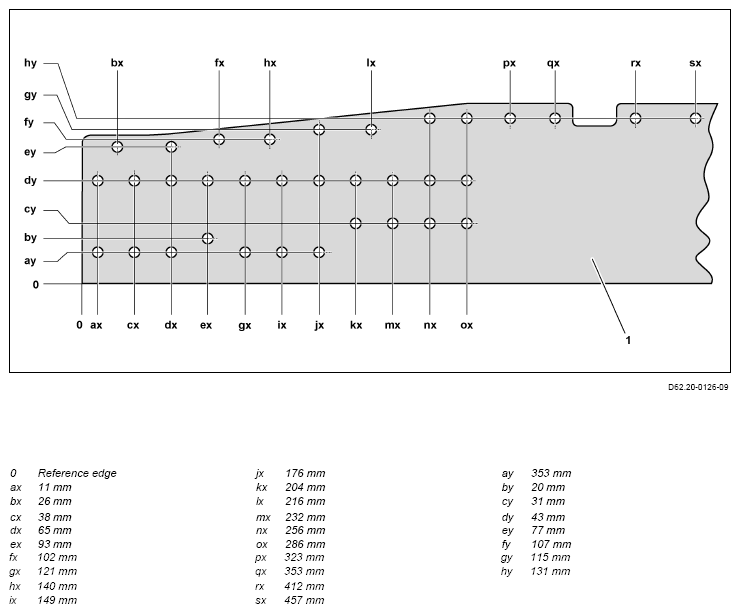

- Scribe holes according to drawing on front longitudinal member (1) on right and left, center punch and drill Ø 6 mm pilot hole and then drill with Ø 10 mm. Deburr holes.
Mark dimensions from references edges (0).
- Scribe dimensions according to drawing on front longitudinal member (1) on at bottom, center punch and drill Ø 6 mm pilot hole and then drill with Ø 10 mm.
- Deburr holes.
- Remove support bushing (2) on shock absorber strut (12) from front axle of vehicle side to be repaired.
- Screw support bushing (2) to front longitudinal member (1).
- Mark both additional holes (5) on front longitudinal member (1).
- Unscrew support bushing (2).
- Drill holes (5) with Ø10, 5 mm bit.
- Deburr holes (5) on both sides.

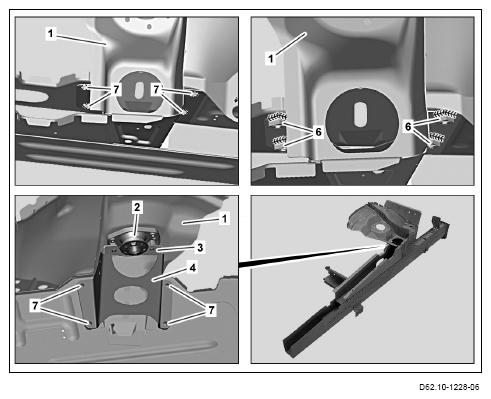

- Install support bushing (2) and brackets (3, 4) on front longitudinal member (1).
- Mark holes (7) on front longitudinal member (1).
- Remove bracket (4) from front longitudinal member (1).
- Center punch holes (7) and drill with Ø 12 mm bit.
- Deburr holes (7) on both sides.
- Grind front longitudinal member (1) around holes (7) down to bare metal in crosshatced area.
- Screw bracket (4) on bracket (3) to front longitudinal member (1) with weld nuts (6).
- Weld nuts (6)
.
- Unscrew support bushing (2) and brackets (3, 4) from front longitudinal member (1).
- Coat both inner weld nuts (6) with zinc dust paint.
- Install support bushing (2) on shock absorber strut (12) on front axle.

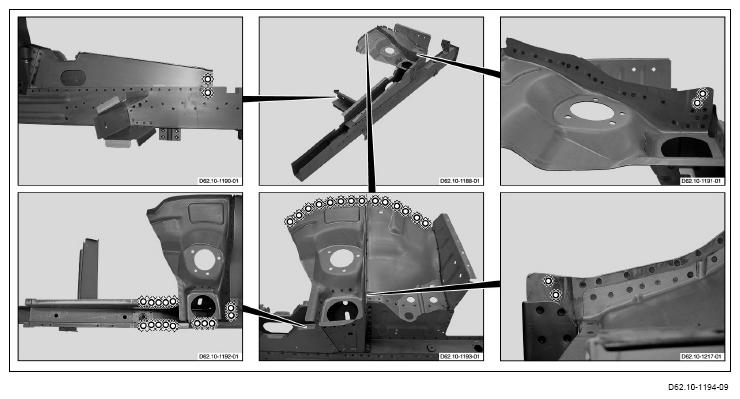

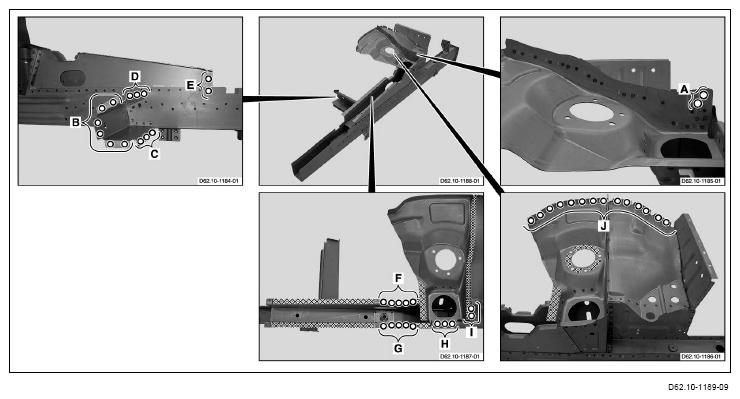

- Punch holes on front longitudinal with Ø 6 mm bit (areas A, B, C, D and J).
- Drill holes on front longitudinal member with Ø 7 mm bit (areas E, F, G, H and I).

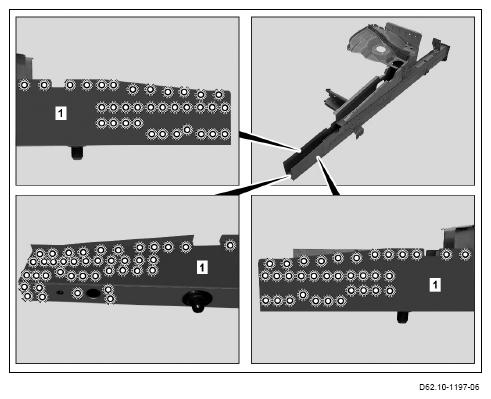

- Grind mating surfaces on front longitudinal member down to bare metal in crosshatched areas.
- Coat insides of spot weld flanges with zinc dust paint.
- Grind crosshatched areas on front longitudinal member down to bare metal around holes.
- Grind crosshatched areas on front longitudinal member (1) down to bare metal around holes.
