Install Front Longitudinal Member Up To Passenger Compartment Floor Area And Weld In - Ar62.20-D-1240-14H

The following operation steps are shown on the left side of the vehicle on model 906.733 and must be performed analogously on the right side in the event of damage.

1. Install front longitudinal member (1), fit and fix in place.

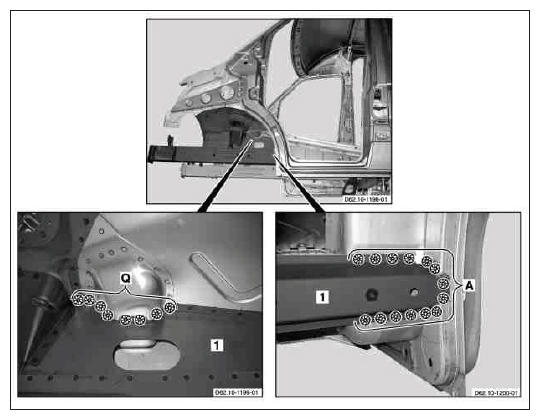

2. Front longitudinal member (1) (areas A and Q).

   Courtesy of MERCEDES-BENZ USA

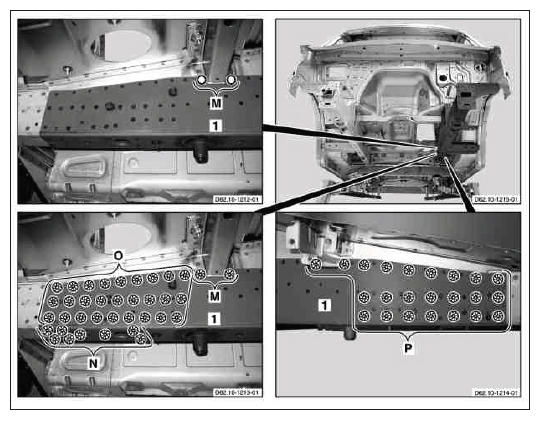

3. Drill Ø 7 mm pilot holes (area M).
4. Font longitudinal member (1) (areas M, N, O and P).

   Courtesy of MERCEDES-BENZ USA

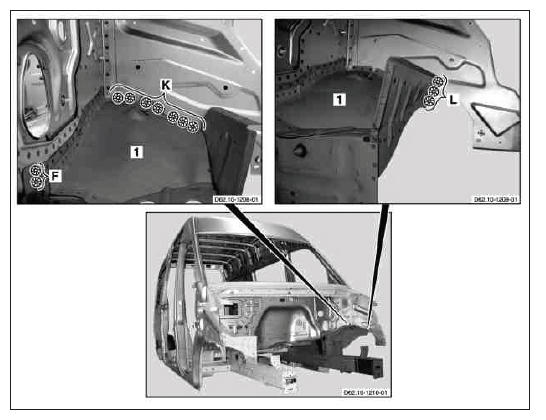

5. Front longitudinal member (1) (areas F, K and L).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

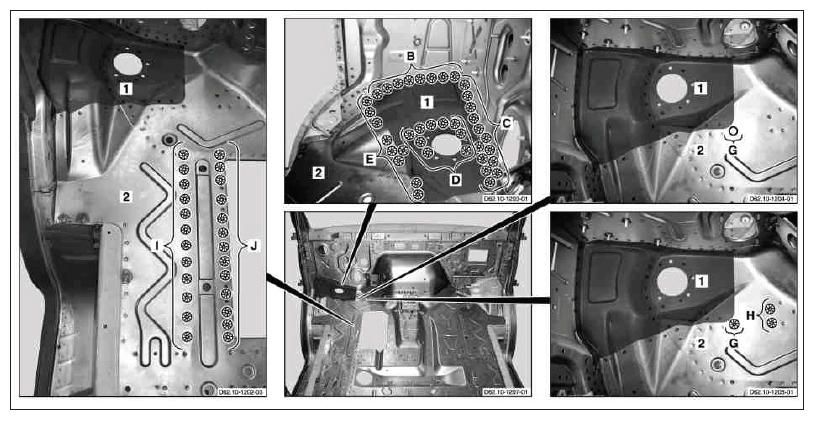

6. Drill Ø 7 mm hole in vehicle floor (2) (area G).
7. Front longitudinal member (1) and vehicle floor (2) (areas B, C, D, E, G, H, I and J).
