Remove/Install Rain/Light Sensor - Ar82.30-D-7800H

MODEL 906 with CODE (JA5) Light/rain sensor

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

7.2.11	Repair method extended	Operation step 1
7.2.11	"Initialize rain sensor" removed, because it is described in the function check	Operation step 6
7.2.11	Repair method extended	Operation steps 1, 2 and 3	AR82.00-S-0020-01S

	Remove/install
1	Remove transmitter key from electronic ignition switch control unit

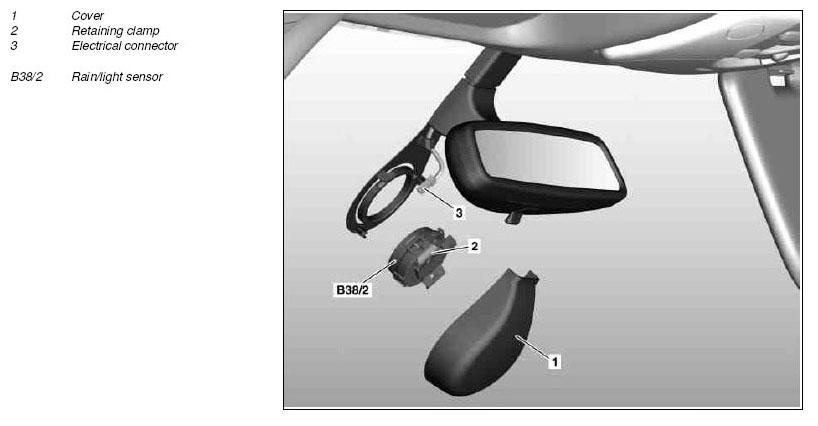

2	Remove cover (1)
3	Detach electrical connector (3) from rain/light sensor (B38/2)
4	Unhook retaining clamp (2)	The retaining clamp (2) is permanently installed with the rain/light sensor (B38/2).
5	Remove the rain/light sensor (B38/2) with the retaining clamp (2)	If necessary, remove any silicone residue from the windshield. The rain/light sensor (B38/2) must always be replaced. If necessary, remove the protective foil on the rain/light sensor (B38/2) before installation.
		Loctite 7200	*BR00.45-Z-1038-04A
6	Install in the reverse order
	Checking
7	Perform function check on rain/light sensor (B38/2)		AR82.00-S-0020-01S

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Munchen Germany Tel. +49 899268-0 Fax + 49 899101978 www.Loctite.de
