Remove/install center console - AR68.20-P-2000W
MODEL 172.4

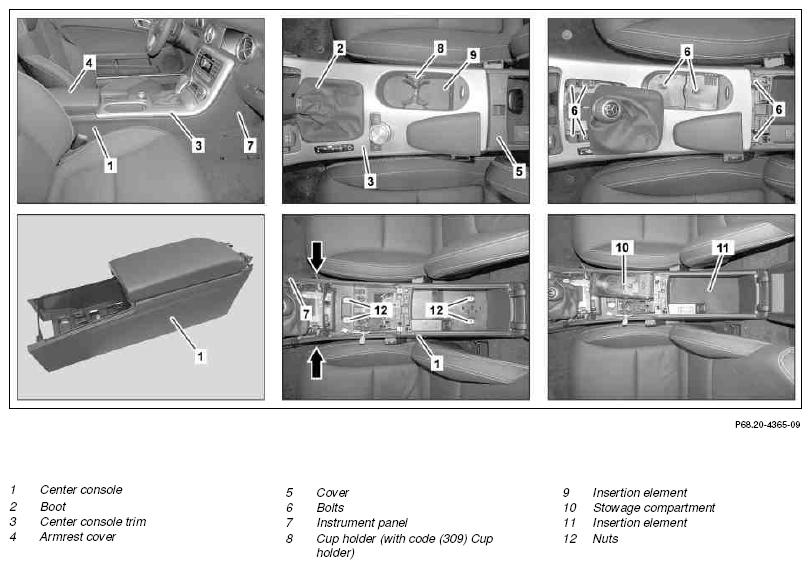

Shown with code (309) Cup holder and code (427) 7-speed automatic transmission
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Set selector lever to position "0" or gearshift lever to neutral position | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Unclip boot (2) from center console cover (3) | Fig 2 | |
| 4 | Open armrest cover (4) | ||
| 5 | Unclip cover (5) | Fig 2 | |
| 6 | Remove cup holder (8) and insertion element (9) from stowage compartment (10) | ||
| 7 | Remove bolts (6) | Rechargeable drill/screwdriver |
|
| 8 | Unclip center console cover (3) from center console (1) and instrument panel (7) and lift until electrical connectors are accessible at the bottom of the center console cover (3) | ||
| 9 | Disconnect electrical connectors at bottom of center console cover (3) and remove center console cover (3) | ||
| 10 | Pull stowage compartment (10) out of center console (1) toward front and remove | ||
| 11 | Remove insertion element (11) | ||
| 12 | Unscrew nuts (12) | Rechargeable drill/screwdriver |
|
| 13 | Unclip center console (1) in front area (arrows) on instrument panel (7) and lift until electrical connectors are accessible at bottom side of center console (1) | ||
| 14 | Disconnect electrical connectors at bottom of center console (1) and remove center console (1) | ||
| 15 | Install in the reverse order |
