Remove/install radiator grille - AR88.40-P-4001W
MODEL 172.4
Shown with code (230) Exclusive parking assist and code (233) DISTRONIC PLUS
| Remove/install | |||
| 1 | Remove front bumper | AR88.20-P-2000W | |

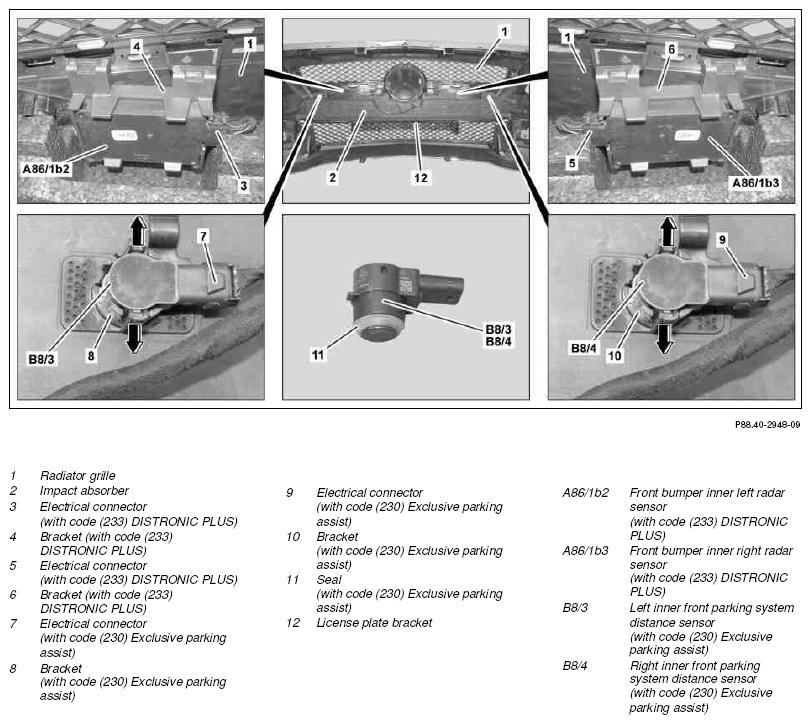

| 2 | Remove impact absorber (2) | ||
| 3 | Disconnect electrical connectors (3, 5) from front bumper left inner radar sensor (A86/1b2) and front bumper right inner radar sensor (A86/1b3) | On vehicles with code (233) DISTRONIC PLUS | |
| 4 | Unclip bracket (4, 6) from radiator grille (1) and remove with front bumper left inner radar sensor (A86/1b2) and from front bumper right inner radar sensor (A86/1b3) | When replacing radiator grille (1) on vehicles with code (233) DISTRONIC PLUS | |
| 5 | Disconnect electrical connector en (7, 9) from inner left front parking system distance sensor (B8/3) and right inner front parking system distance sensor (B8/4) | On vehicles with code (230) Exclusive parking assist | |
| 6 | Release catch hooks on bracket (8, 10) in direction of arrow and remove inner left front parking system distance sensor (B8/3) and right inner front parking system distance sensor (B8/4) from brackets (8, 10) | When replacing radiator grille (1) on vehicles with code (230) Exclusive parking assist |
|
| 7 | Remove license plate number and license plate bracket (12) | ||

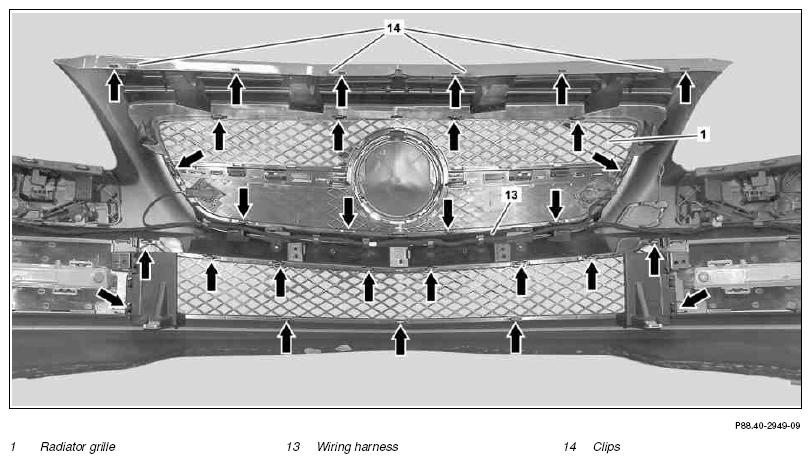

| 8 | Unhook wiring harness (13) from radiator grille (1) | ||
| 9 | Remove clips (14) at top of radiator grille (1) | ||
| 10 | Release catch hook (arrows) on radiator grille (1) and remove radiator grille (1) from bumper | ||
| 11 | Remove Mercedes star | When replacing radiator grille (1). | AR88.40-P-4050W |
| 12 | Remove Mercedes star cover | When replacing radiator grille (1). | |
| 13 | Install in the reverse order |
