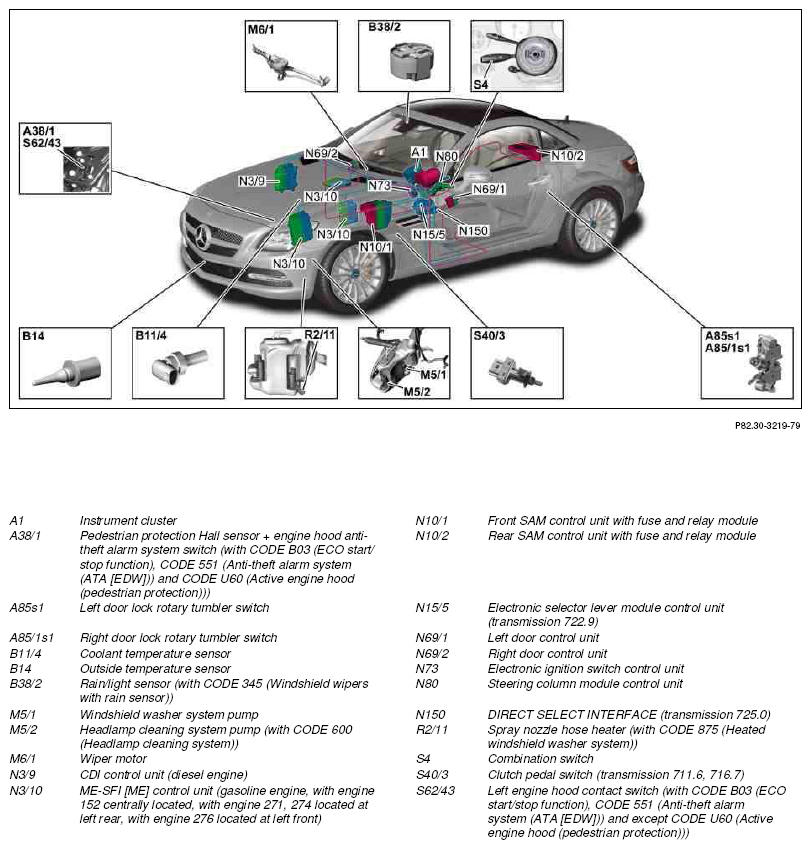

Overview of system components for windshield wiper system - GF82.30-P-9996RD
MODEL 172.4
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for CDI control unit | MODEL 172.4 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | MODEL 172.4 with ENGINE 152.9 N3/10 |
GF07.61-P-6000MMI | |
| MODEL 172.4 with ENGINE 271.861 N3/10 |
GF07.61-P-6000MGA | ||
| MODEL 172.4 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRE | ||
| MODEL 172.4 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for electronic selector lever module control unit | MODEL 172 with TRANSMISSION 722.9 N15/5 |
GF27.60-P-5163AHN | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| DIRECT SELECT interface, component description | MODEL 172 with TRANSMISSION 725.0 N150 |
GF27.19-P-1300ANH | |
| Table of contents for function description of windshield wiper system | GF82.30-P-0997RD |
