Remove/install rear engine support - AR22.10-P-4360RKA

ENGINE 157, 276, 278 in MODEL 231

Shown on model 231 with engine 276.9

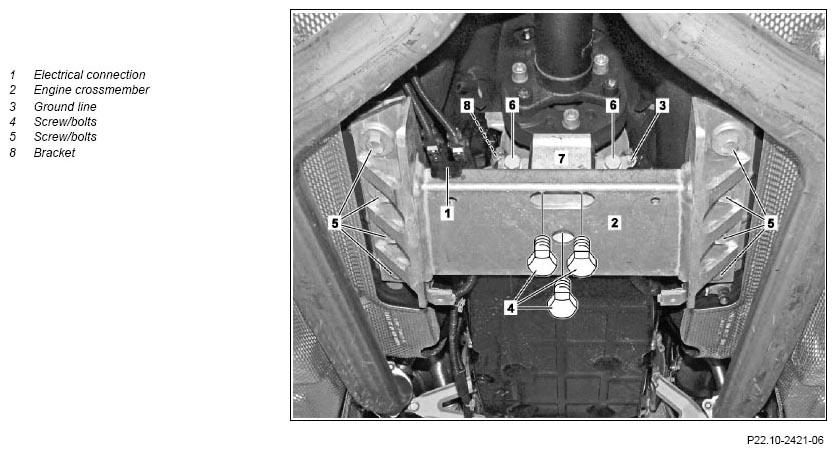

Fig 1: Rear Engine Support Remove/Install Components - Shown On Model 231 With Engine 276.9

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Remove rear part section of engine compartment paneling		AR61.20-P-1105RK
2	Secure vehicle on vehicle lift		AR00.60-P-0100TX
3	Unclip electrical connection (1) on engine crossmember (2)
4	Unclip ground line (3) on engine crossmember (2)
5	Secure transmission with major assembly holding device and support plate to prevent it from falling down
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
6	Remove screw/bolts (4)	Rear engine mount on engine support	*BA22.10-P-1004-03E
7	Raise transmission with a major assembly holding device and support plate by about 10 mm
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
8	Remove screw/bolts (5) and remove engine crossmember (2) downwards	Bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
9	Install in the reverse order
