Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MME
ENGINE 157.9, 276.9, 278.9 in MODEL 231

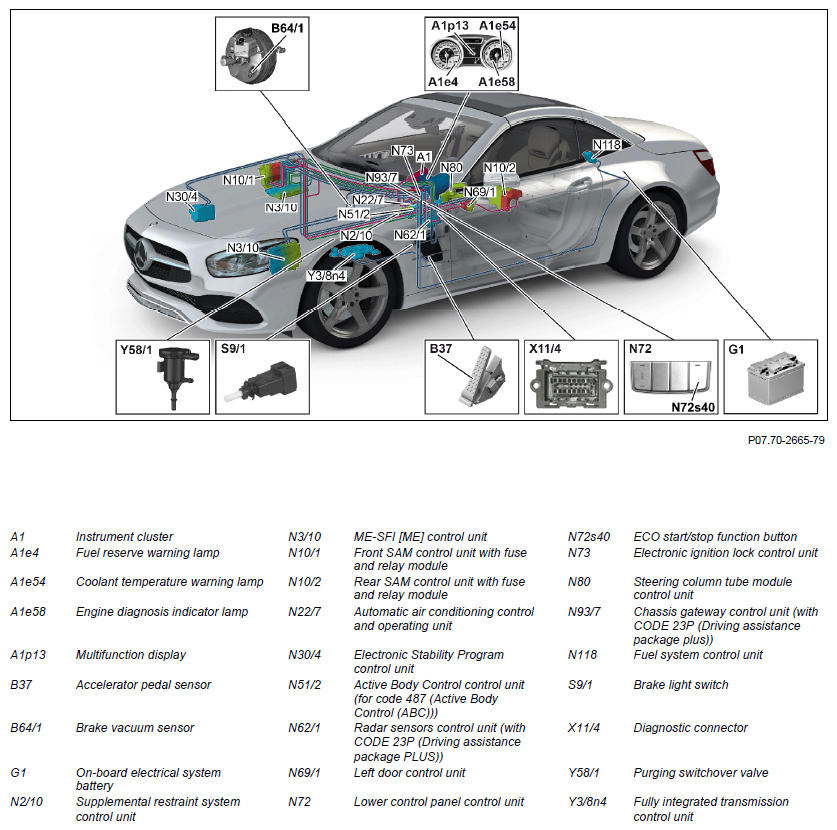

Vehicle view from the front left up to model year 2017
Fig 1: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Shown Up To Model Year 2017

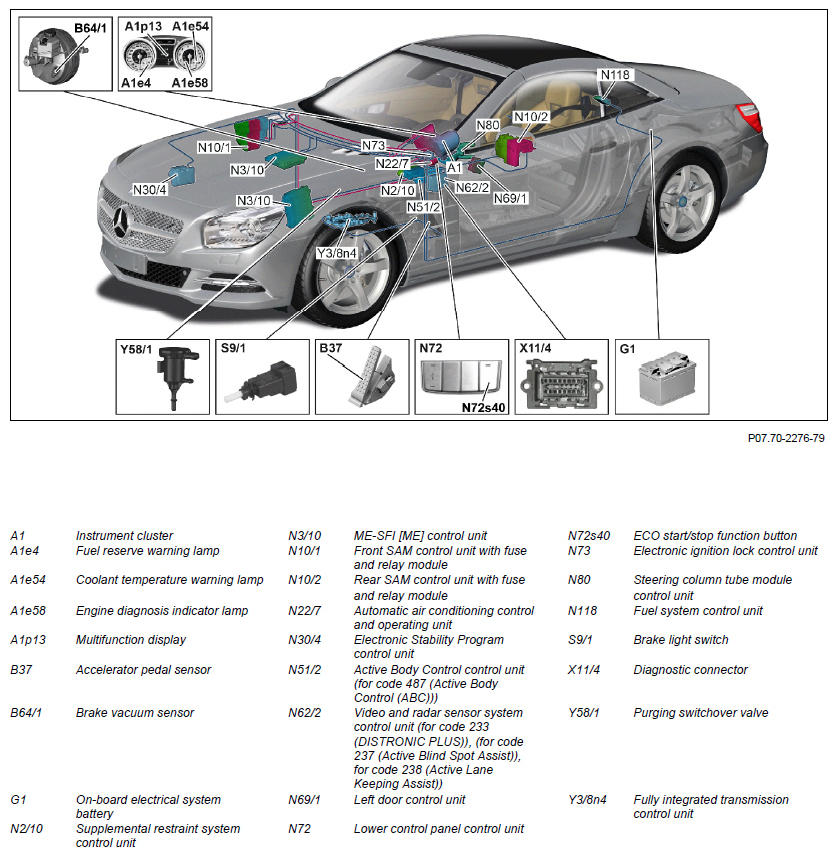

Vehicle view from front left as of model year 2017
Fig 2: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Shown As Of Model Year 2017

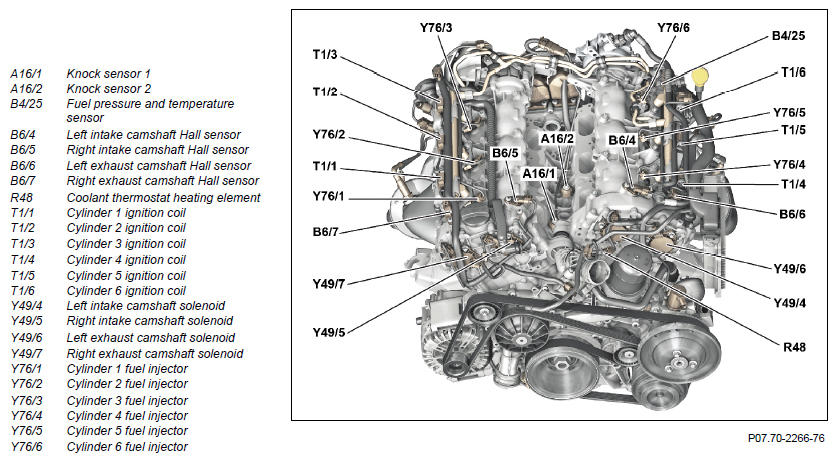

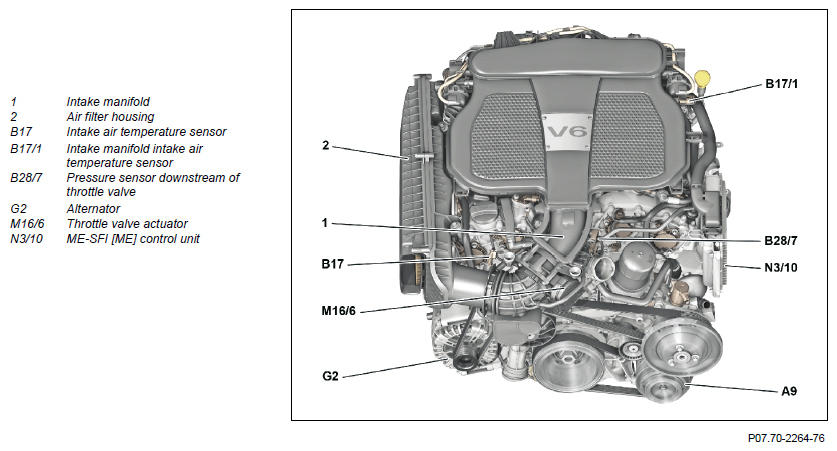

View of engine 276.9 from top front (except code (920) Gasoline direct injection with stratified charge)
Fig 3: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - View Of Engine 276.9 Except Code 920
View of engine 276.9 from top front (with code 920 (Gasoline direct injection with stratified charge))
Fig 4: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - View Of Engine 276.9 With Code 920

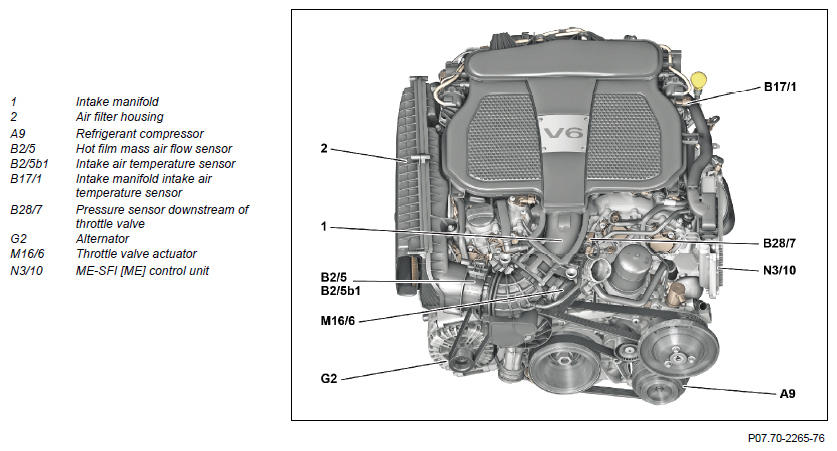

View of engine 276.9 from top front
Fig 5: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Top Front View Of Engine 276.9

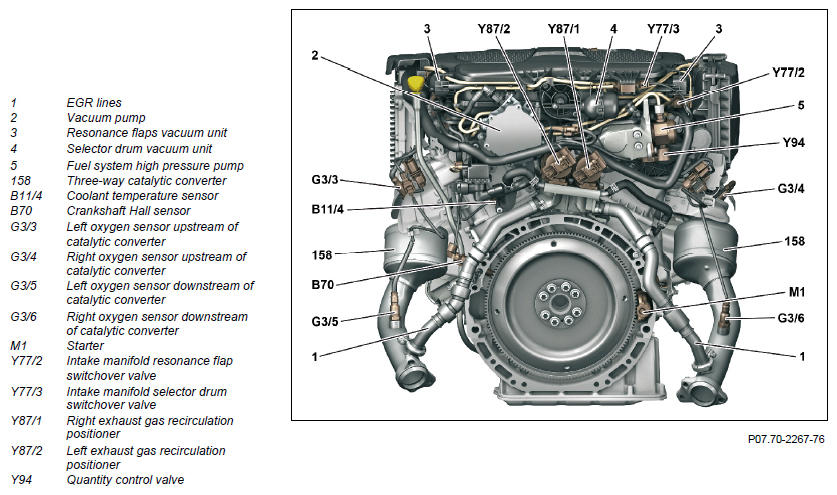

View of engine 276.9 from rear (for code 920 (Gasoline direct injection with stratified charge))
Fig 6: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Rear View Of Engine 276.9

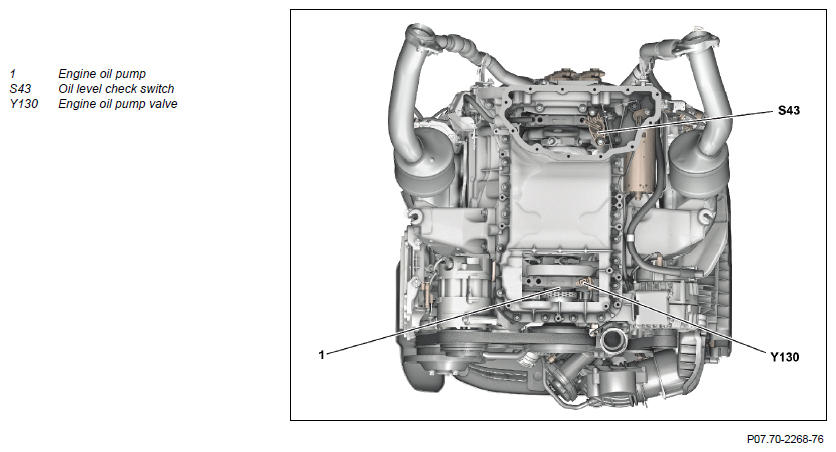

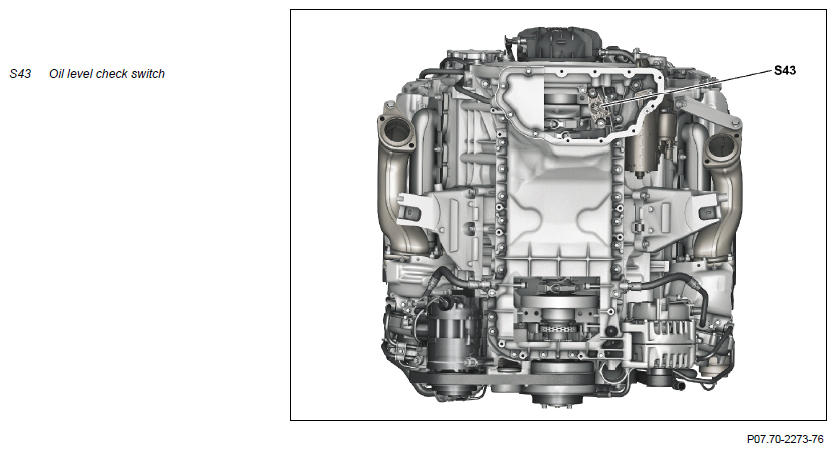

View of engine 276.9 from below
Fig 7: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Below View Of Engine 276.9

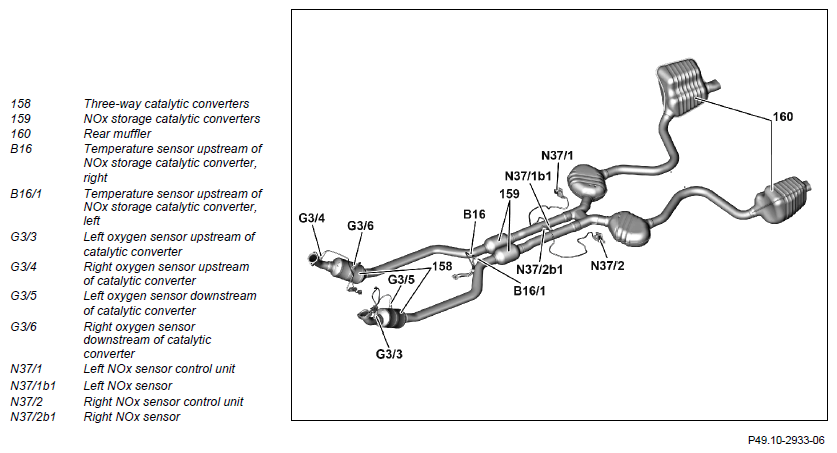

Exhaust system shown on engine 276.9 (with code 920 (Gasoline direct injection with stratified charge))

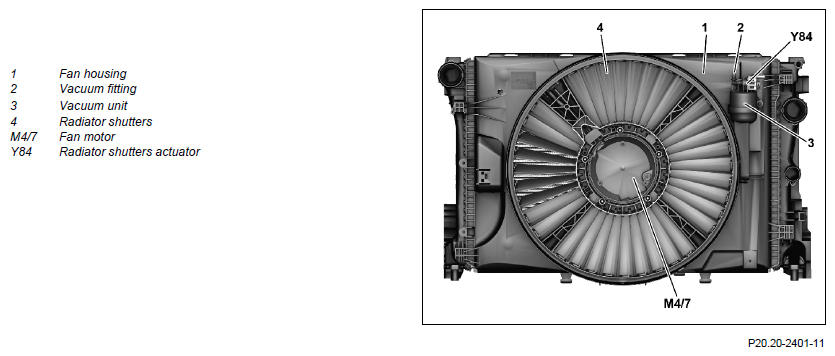

View of radiator from behind with engine 276.9

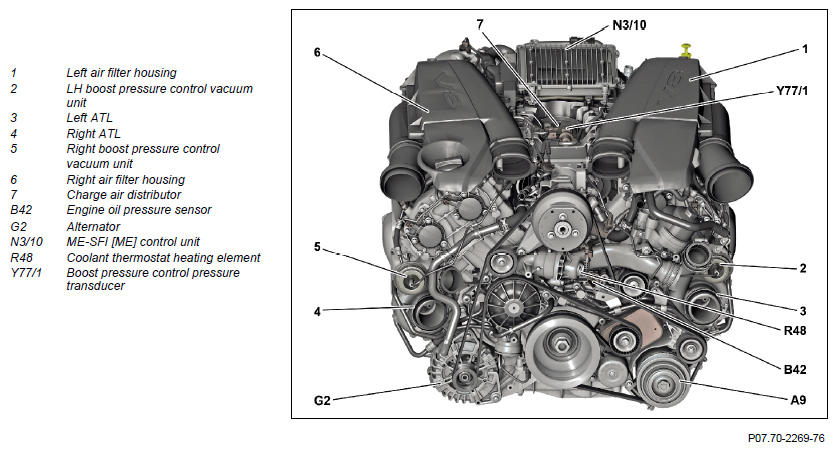

View of engine 278.9 from top front

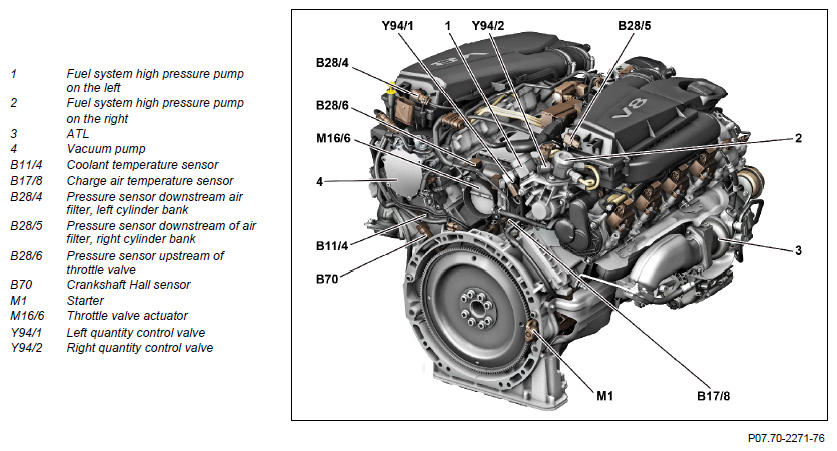

Fig 10: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Top Front View Of Engine 278.9 (1 Of 2)

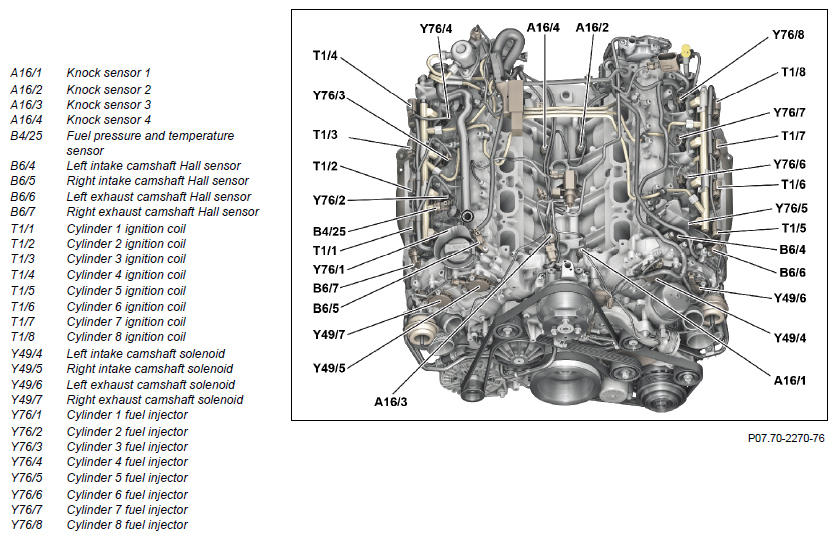

Fig 11: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Top Front View Of Engine 278.9 (2 Of 2)
View of engine 278.9 from rear right

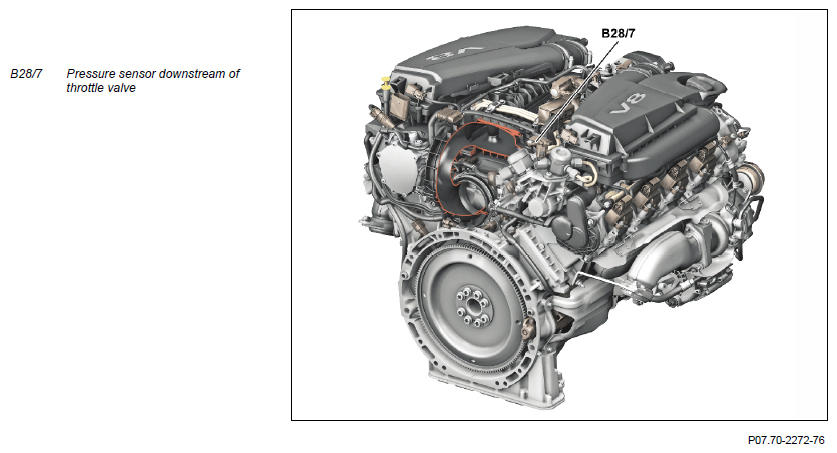

Fig 12: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Right Rear View Of Engine 278.9 (1 Of 2)
Fig 13: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Right Rear View Of Engine 278.9 (2 Of 2)

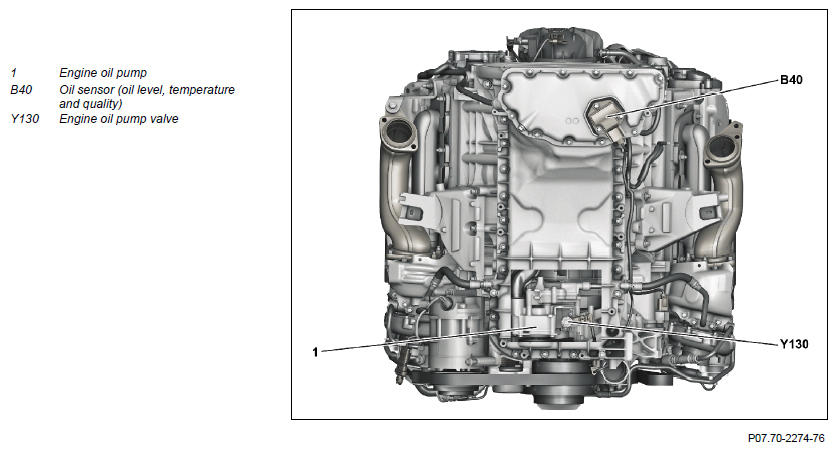

View of engine 278.9 from below
Fig 14: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Below View Of Engine 278.9
View of engine 157.9 from below
Fig 15: Overview Of Gasoline Injection And Ignition System With Direct Injection System Components - Below View Of Engine 157.9

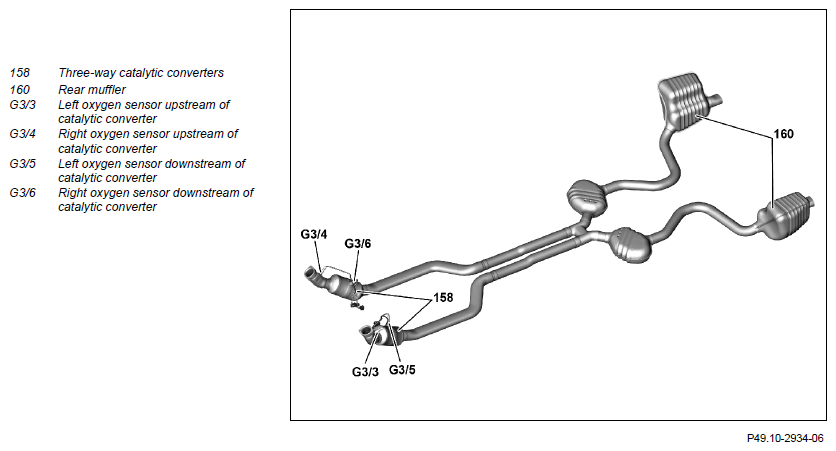

Shown: exhaust system for engine 157.9

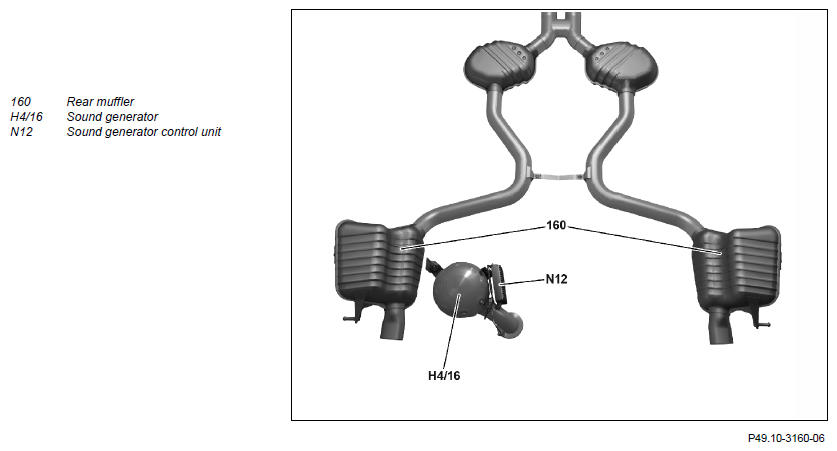

Shown: exhaust system from the rear (for engine 278.9 with code U78 (Sporty engine sound))

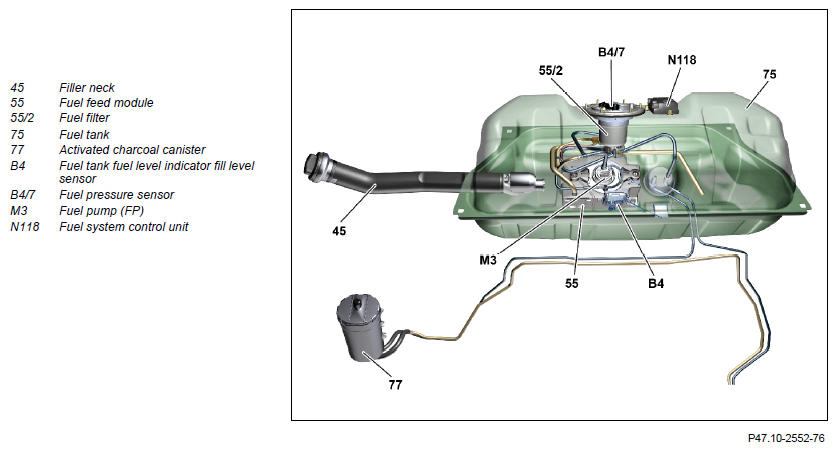

Phantom view of the fuel tank (except code 494 (USA version))

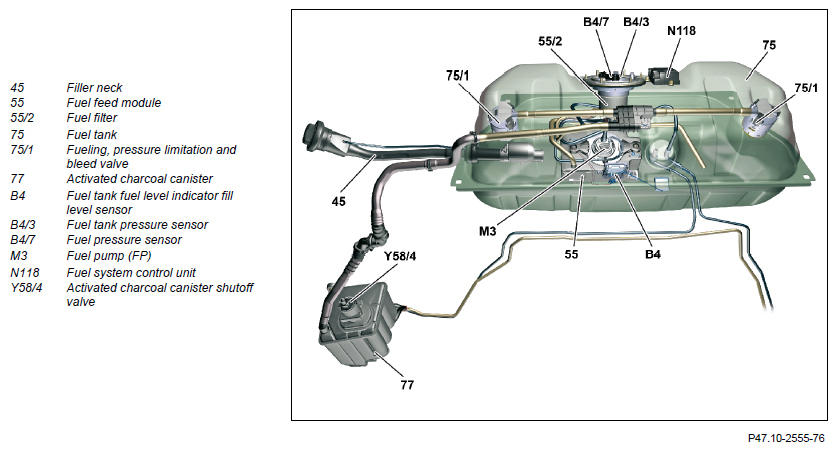

Phantom view of fuel tank (with CODE 494 (USA version))

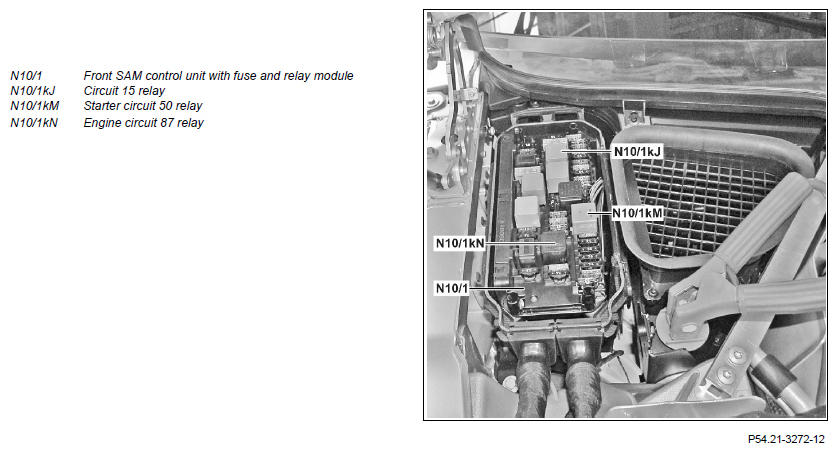

View of engine compartment from rear right

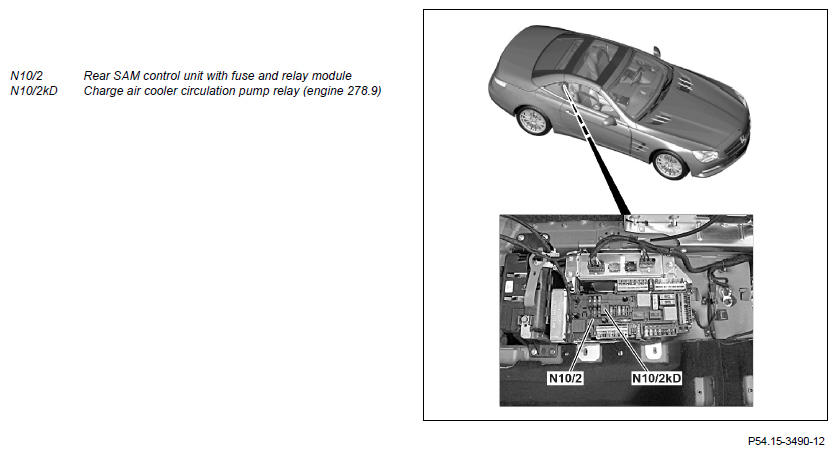

Vehicle view from top right

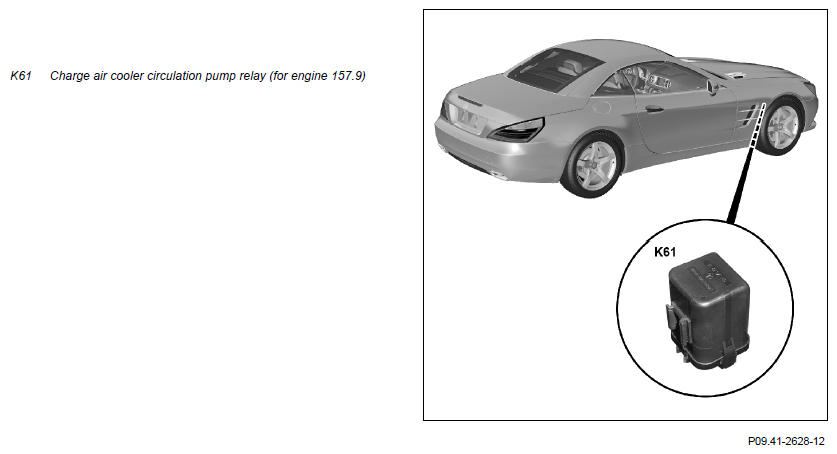

Vehicle view from the right rear
Shown on low-temperature circuit (with engine 157.9, 278.9)

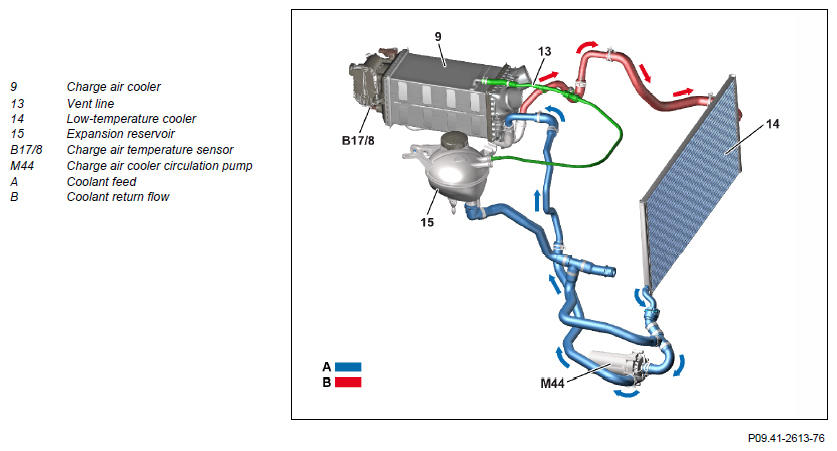

Fig 23: Charge Air Cooler Flow Diagram - Shown On Low-Temperature Circuit (With Engine 157.9, 278.9)
| Component description for instrument cluster | A1 | GF54.30-P-6000RK | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RK | |
| Component description for ME-SFI (ME) control unit | Engine 276.9 in model 231.4 N3/10 | GF07.61-P-6000MME | |
| Engine 157.9 in model 231.4 Engine 278.9 in model 231.4 N3/10 |
GF07.61-P-6000MMF | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RK | |
| Sound generator control unit, component description | Engine 278.9 in model 231.4 with code U78 (Sporty engine sound) N12 |
GF49.10-P-2004RK | |
| Component description for climate control, control and operating unit | N22/7 | GF83.40-P-3002RK | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RK | |
| Component description for NOx sensor control unit | Engine 276.9 in model 231.4 with code 920 (Direct petrol injection with stratified charging) N37/1, N37/2 |
GF14.40-P-3024MME | |
| ABC control unit, component description | Model 231 with engine 157.9, 276.9, 278.9 with code 487 (Active Body Control (ABC)) N51/2 | GF32.50-P-4501RK | |
| Component description for radar sensors control unit | Model 231 with engine 157.9, 276.9, 278.9 as of model year 2017 with code 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301RKM | |
| Component description for video and radar sensor system control unit | Model 231 with engine 157.9, 276.9, 278.9 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Lower control panel control unit, component description | Model 231 (except 231.474/479) with engine 157.9, 276.9, 278.9 N72, N72s40 |
GF54.21-P-6060RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RK | |
| Component description for chassis gateway control unit | Model 231 with engine 157.9, 276.9, 278.9 as of model year 2017 with code 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010RKM | |
| Component description for fuel pump control unit | Engine 276.9 in model 231.4 Engine 278.9 in model 231.4 N118 |
GF47.40-P-2001MME | |
| Engine 157.9 in model 231.4 N118 | GF47.40-P-2001MMF | ||
| Component description for fully integrated transmission control unit | Model 231 with engine 276.9 with transmission 722.9 (except 722.931) | GF27.60-P-5165AHP | |
| Model 231 with engine 278.9 with transmission 722.9 (except 722.931) Y38n4 Model 231.4 with engine 157.9 with transmission 722.931 Y38n4 |
GF27.60-P-5165AHJ | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | Engine 276.9 in model 231.4 | GF07.70-P-0998MME | |
| Engine 157.983 in model 231.474 Engine 278.927 in model 231.473 |
GF07.70-P-0998MMF |
