Remove/install cover below instrument panel (right) - AR68.10-P-1520RK

MODEL 231

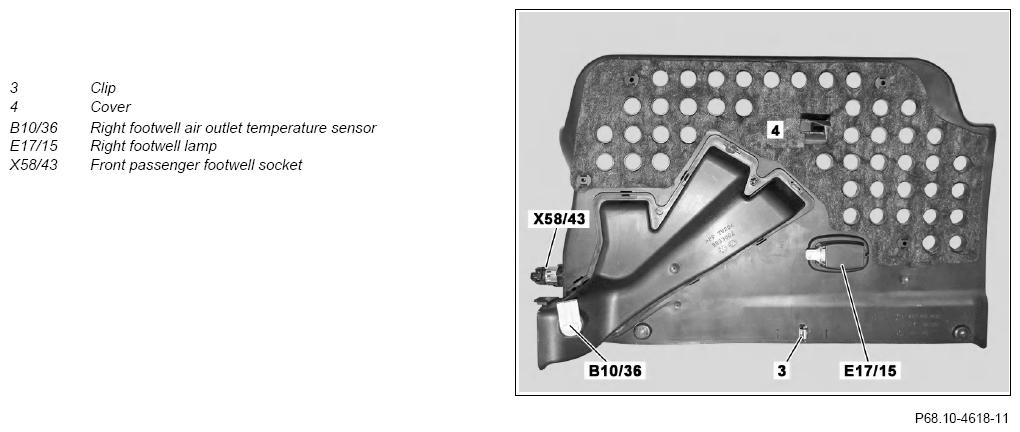

Fig 1: Cover Below Instrument Panel (Right) Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

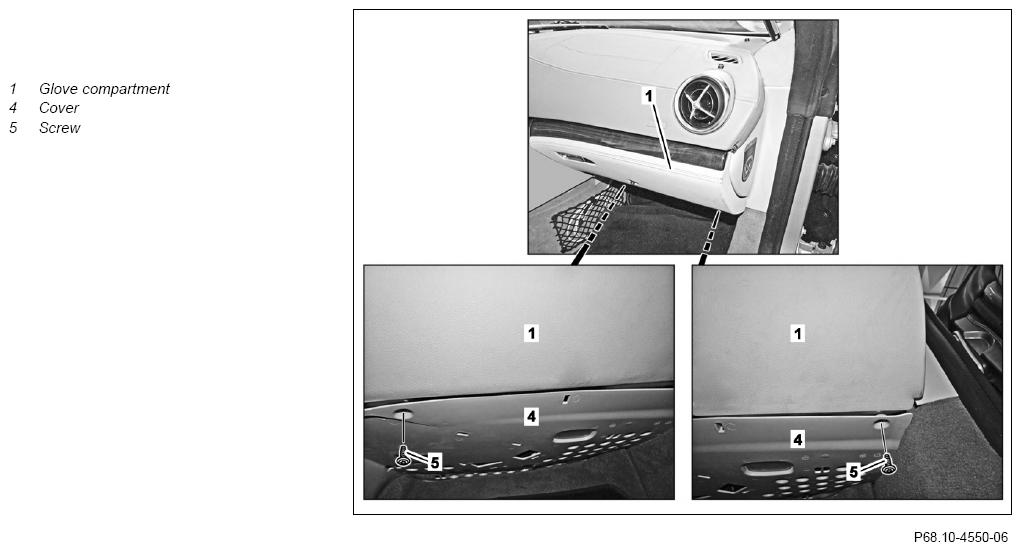

Fig 2: Cover Below Instrument Panel (Right) Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front passenger seat to end position toward rear
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with code (889) KEYLESS-GO.
3	Unscrew bolts (5) and lower cover (4) downward	Install clip (3) in corresponding mount on glove box (1) and arrest.
4	Disconnect electrical connectors from right footwell nozzle air outlet temperature sensor (B10/36)
5	Disconnect electrical connector from right footwell lamp (E17/15)
6	Disconnect electrical connector form passenger footwell socket (X58/43)
7	Remove cover (4)
8	Install in the reverse order
