Remove/install fender liner in rear fender - AR88.10-P-1400LF
MODEL 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | ||

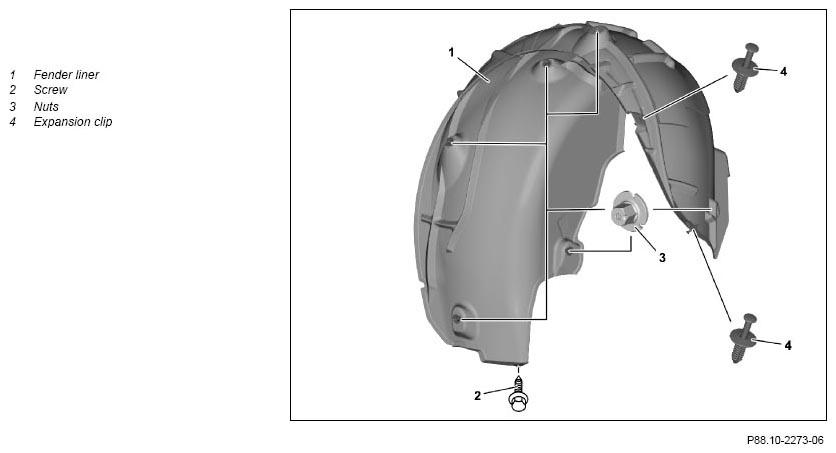

| 2 | Unscrew bolt (2) | ||
| 3 | Remove expansion clips (4) | ||
| 4 | Unscrew nuts (3) | ||
| 5 | Pull outer edge of fender liner (1) toward inside out of fender edge and remove fender liner (1) downward | ||
| 6 | Install in the reverse order |
