Remove/install park pawl capacitor - AR54.10-P-1126LC

MODEL 217.3

MODEL 222

MODIFICATION NOTES

15.07.2016

Work procedure for model 222 changed.

Steps 2 and 3

Shown on model 217.3

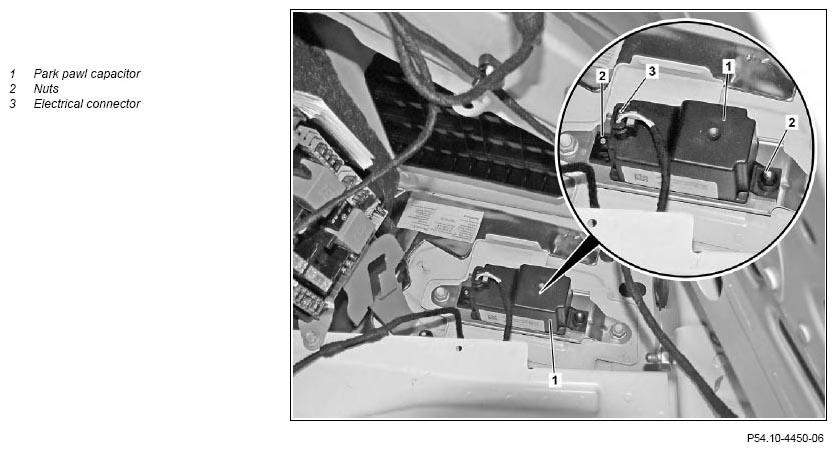

Fig 1: Park Pawl Capacitor Remove/Install Components - Shown On Model 217.3

Courtesy of MERCEDES-BENZ USA

Model 222

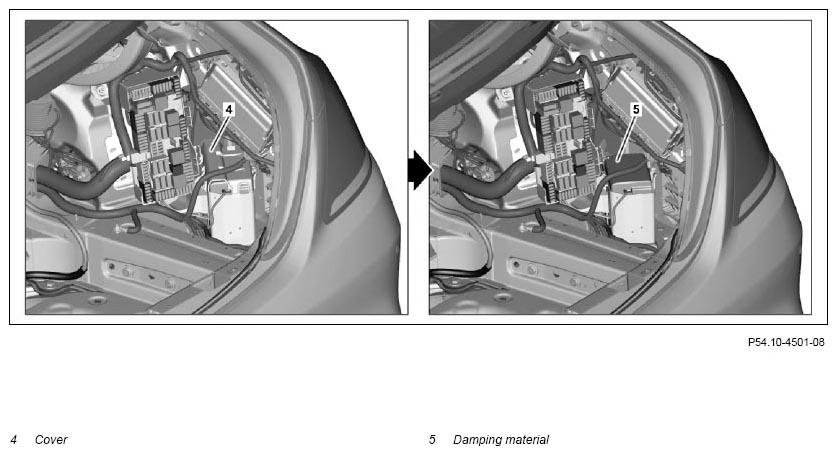

Fig 2: Park Pawl Capacitor Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove the RH panel in the trunk	Model 222.0/1/9	AR68.30-P-4600LF
		Model 217.3	AR68.30-P-4600LC
2	Remove cover (4)	Model 222
3	Remove soundproofing (5) with park pawl condenser (1) and expose park pawl condenser (1)	Model 222
4	Release and disconnect electrical connection (3) on park pawl condenser (1)
5	Unscrew nuts (2)	Model 217.3
6	Remove park pawl capacitor (1)
7	Install in the reverse order
