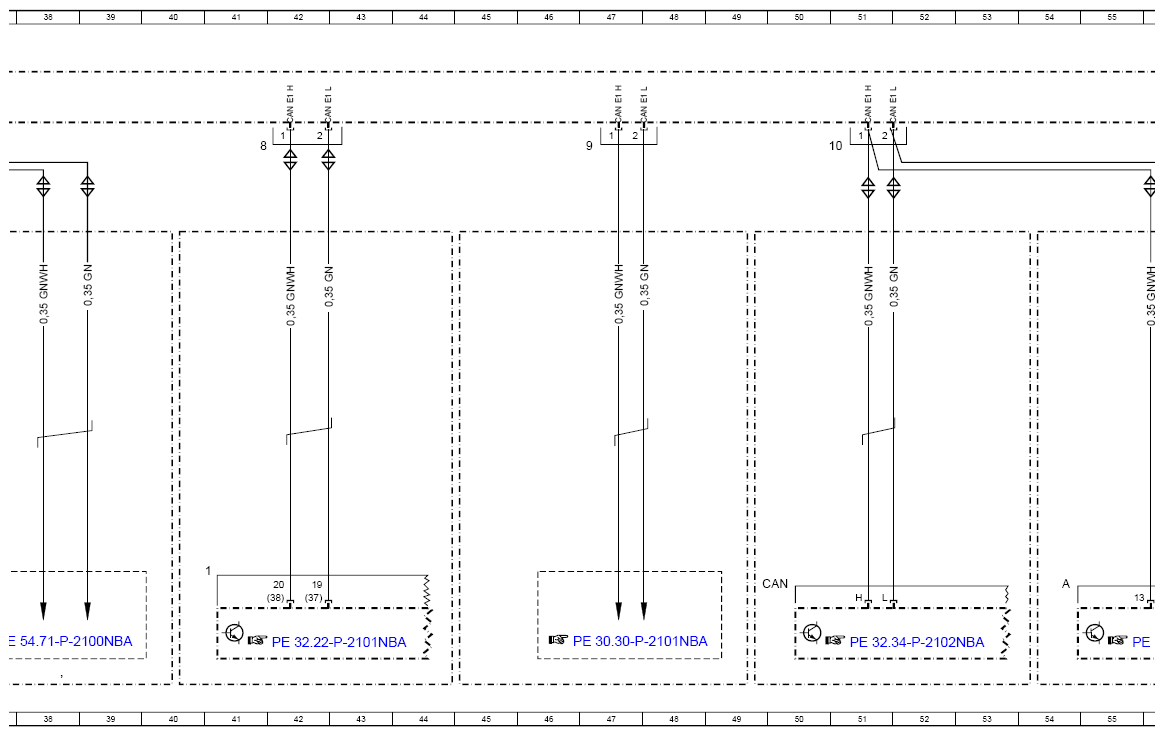

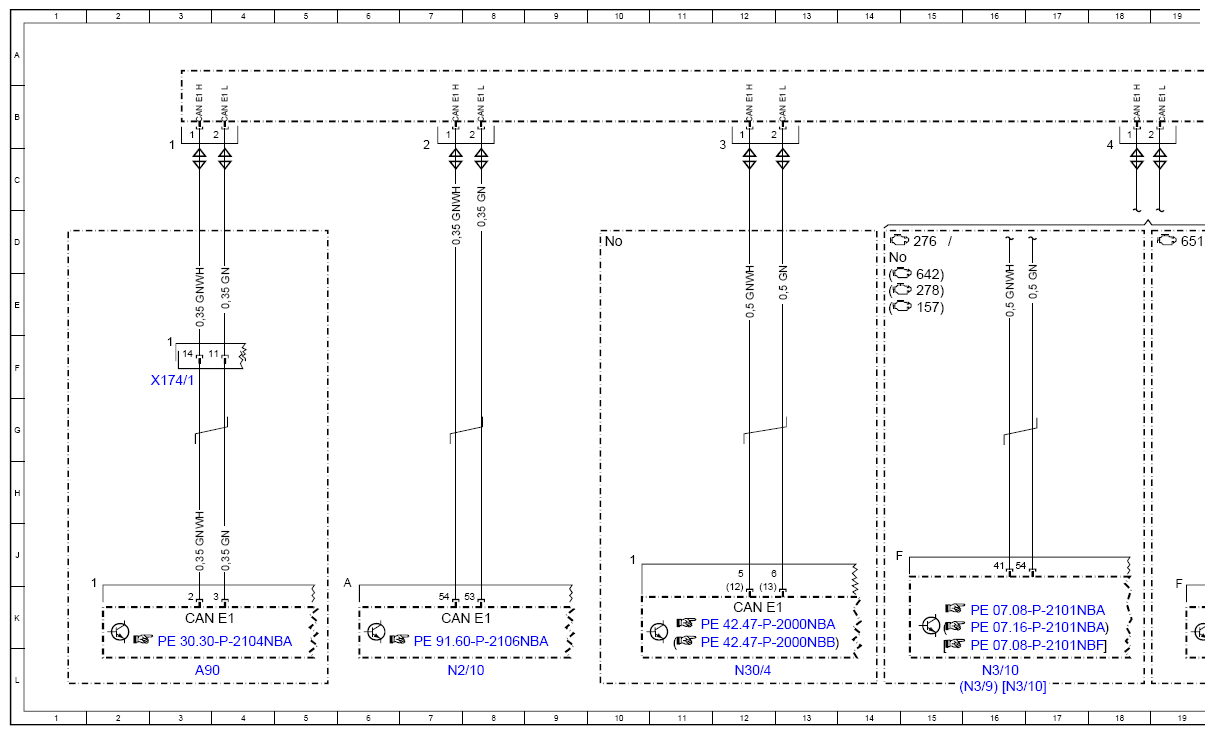

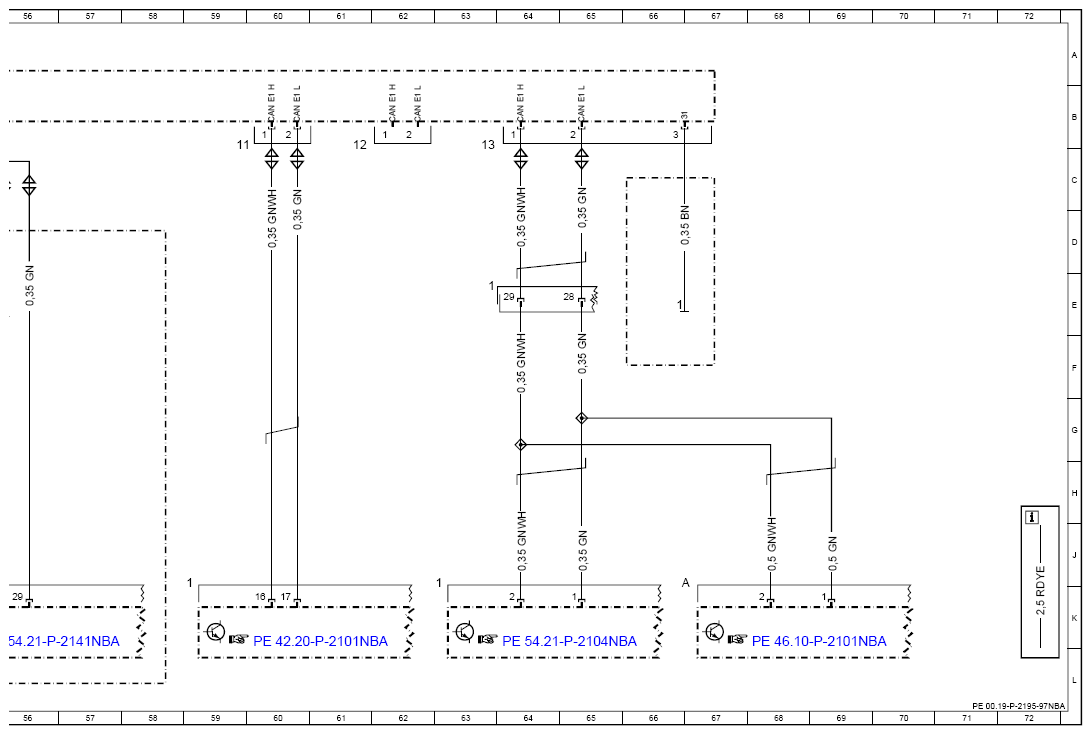

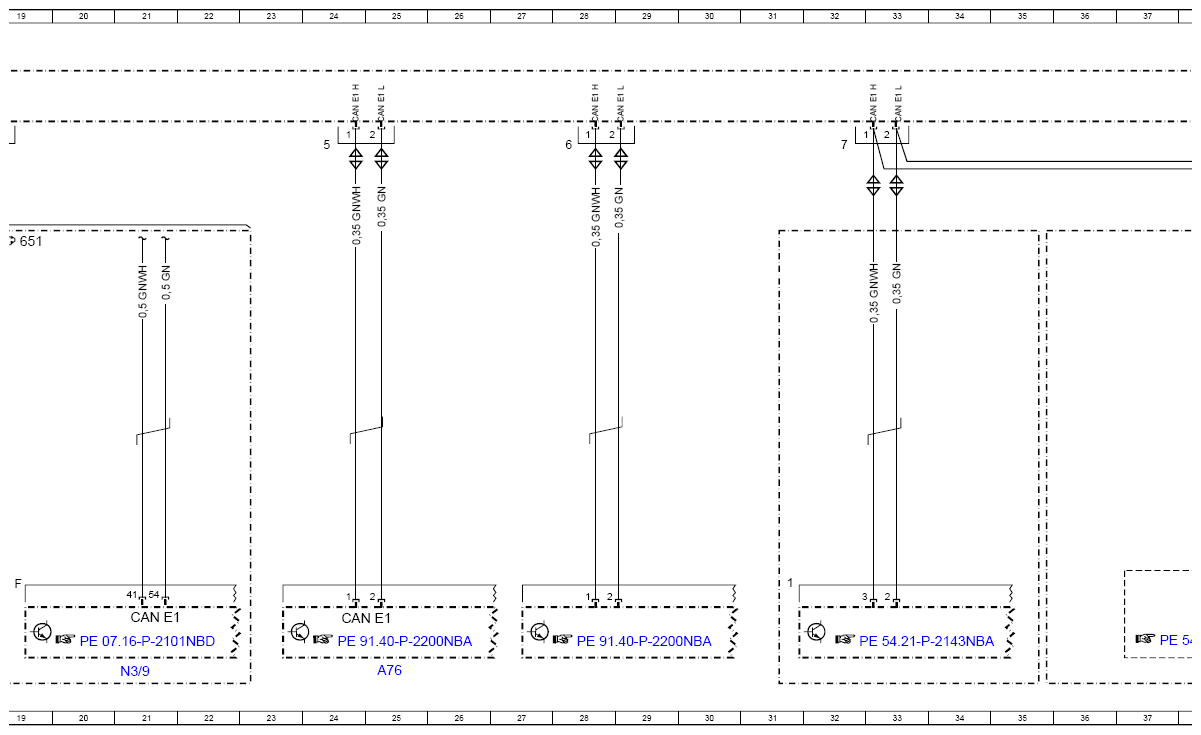

Wiring Diagram Of Chassis CAN - PE00.19-P-2195-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 Potential distributor X30/19
MODEL 292 Potential distributor X30/19
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A76 | Left front reversible emergency tensioning retractor | 25L |
| A76/1 | Right front reversible emergency tensioning retractor | 29L |
| A89 | DISTRONIC electric controller unit | 47L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 3L |
| B92/11 | Left outer rear bumper integrated radar sensor | 39L |
| B92/6 | Right outer rear bumper integrated radar sensor | 38L |
| CAN E1 | Chassis CAN 1 | 12K |
| CAN E1 | Chassis CAN 1 | 3K |
| CAN E1 | Chassis CAN 1 | 7K |
| CAN E1 | Chassis CAN 1 | 21K |
| CAN E1 | Chassis CAN 1 | 24K |
| CAN E1 | Chassis CAN 1 | 28K |
| CAN E1 | Chassis CAN 1 | 33K |
| CAN E1 | Chassis CAN 1 | 16K |
| CAN E1 | Chassis CAN 1 | 42K |
| CAN E1 | Chassis CAN 1 | 51K |
| CAN E1 | Chassis CAN 1 | 56K |
| CAN E1 | Chassis CAN 1 | 60K |
| CAN E1 | Chassis CAN 1 | 64K |
| CAN E1 | Chassis CAN 1 | 68K |
| Code 234 | Blind spot assist | 36D |
| Code 239 | DISTRONIC Distance-Pilot | 45D |
| Code 258 | Active Brake Assist | 1D |
| Code 468 | ACTIVE CURVE SYSTEM | 50D |
| Code 489 | AIRMATIC | 40D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 54D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 11D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 15D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | |
| N127 | Drivetrain control unit | 56L |
| N128 | Electric parking brake control unit | 60L |
| N2/10 | Supplemental restraint system control unit | 7L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/9 | CDI control unit | 16L |
| N3/9 | CDI control unit | 21L |
| N30/4 | Electronic Stability Program control unit | 12L |
| N51/3 | AIRMATIC control unit | 42L |
| N51/6 | Active roll stabilization control unit | 52L |
| N73 | Electronic ignition switch control unit | 64L |
| N80 | Steering column module control unit | 69L |
| N93/7 | Chassis gateway control unit | 33L |
| U1071 | Valid for stereo multifunction camera | 31D |
| U12 | Valid for left-hand drive vehicles | 66C |
| U13 | Valid for right-hand drive vehicles | |
| U259 | Valid for ADS+ | |
| W15/1 | Right footwell ground point | 66E |
| W15/5 | Left front footwell ground point | |
| X174/1 | Vehicle interior/front bumper electrical connector | 3F |
| X18 |
Vehicle interior and harness for taillamp electrical connector | 63E |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 4A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 12A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 20A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 28A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 36A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 44A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 52A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 60A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 66A |
| Z35/20 | Chassis CAN high connector sleeve 1 | 63G |
| Z35/21 | Chassis CAN low connector sleeve 1 | 64G |
