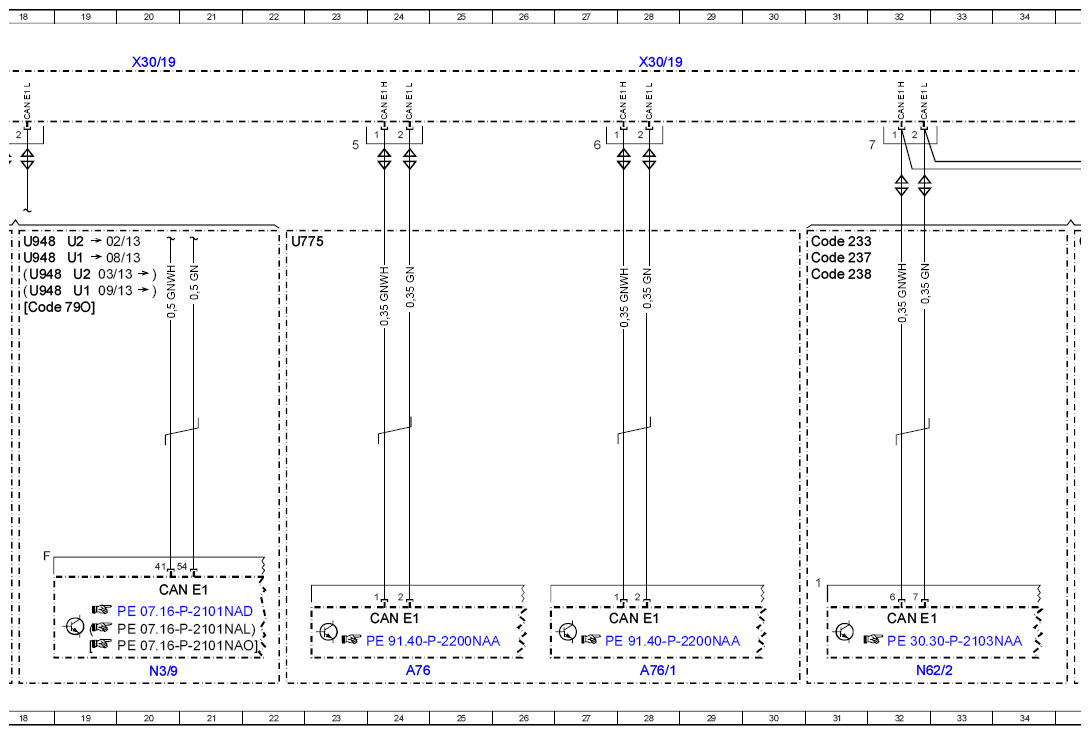

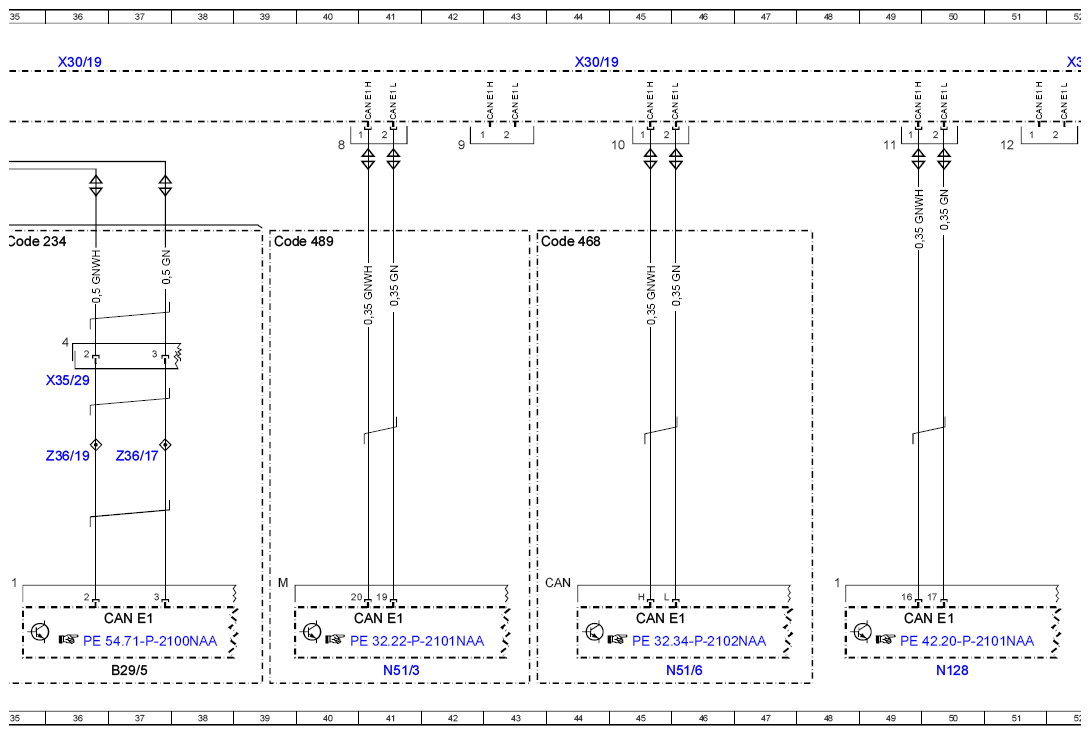

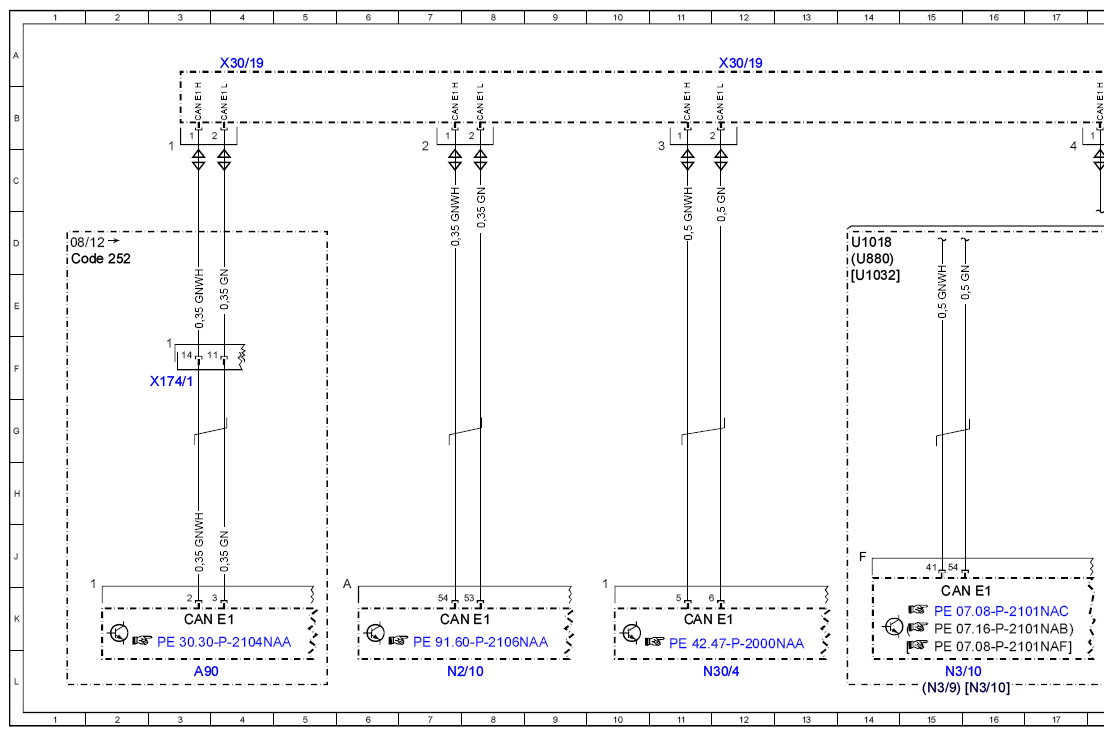

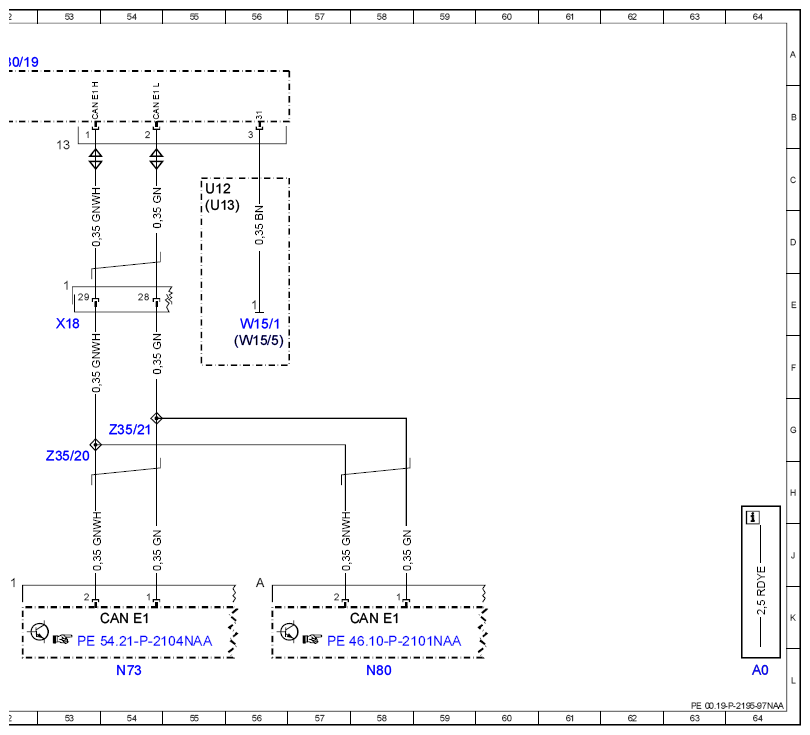

Wiring Diagram Of Chassis CAN - PE00.19-P-2195-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 Potential distributor X30/19
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A76 | Left front reversible emergency tensioning retractor | 24L |
| A76/1 | Right front reversible emergency tensioning retractor | 28L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 3L |
| B29/5 | Right rear bumper intelligent radar sensor | 37L |
| CAN E1 | Chassis CAN 1 | 3K |
| CAN E1 | Chassis CAN 1 | 7K |
| CAN E1 | Chassis CAN 1 | 11K |
| CAN E1 | Chassis CAN 1 | 20K |
| CAN E1 | Chassis CAN 1 | 28K |
| CAN E1 | Chassis CAN 1 | 24K |
| CAN E1 | Chassis CAN 1 | 32K |
| CAN E1 | Chassis CAN 1 | 15K |
| CAN E1 | Chassis CAN 1 | 37K |
| CAN E1 | Chassis CAN 1 | 41K |
| CAN E1 | Chassis CAN 1 | 45K |
| CAN E1 | Chassis CAN 1 | 49K |
| CAN E1 | Chassis CAN 1 | 58K |
| CAN E1 | Chassis CAN 1 | 54K |
| Code 233 | DISTRONIC PLUS | 31D |
| Code 234 | Blind Spot Assist (BSM) | 35D |
| Code 237 | Active Blind Spot Assist | 31D |
| Code 238 | Active Lane Keeping Assist | 31E |
| Code 252 | COLLISION PREVENTION ASSIST | 1D |
| Code 468 | ACTIVE CURVE SYSTEM | 43D |
| Code 489 | AIRMATIC | 39D |
| Code 790 | 18E | |
| N128 | Electric parking brake control unit | 50L |
| N2/10 | Supplemental restraint system control unit | 7L |
| N3/10 | ME-SFI [ME] control unit | 15L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/9 | CDI control unit | 15L |
| N3/9 | CDI control unit | 20L |
| N30/4 | Electronic Stability Program control unit | 12L |
| N51/3 | AIRMATIC control unit | 41L |
| N51/6 | Active roll stabilization control unit | 46L |
| N62/2 | Video and radar sensor system control unit | 32L |
| N73 | Electronic ignition switch control unit | 54L |
| N80 | Steering column module control unit | 58L |
| u1 | Valid for USA | 19D |
| u1 | Valid for USA | 19E |
| u1018 | Valid for gasoline engine 276 | 14D |
| U1032 | Valid for engine 278 and 157 | 14E |
| u12 | Valid for left-hand drive vehicles | 55C |
| U13 | Valid for right-hand drive vehicles | 55C |
| U2 | Val id for all except USA | 19E |
| U2 | Val id for all except USA | 19D |
| U775 | Valid for emergency tensioning retractor | 22D |
| U880 | Val id for engine 642 | 14D |
| U948 | Valid for diesel engine 651 | 18D |
| U948 | Valid for diesel engine 651 | 18E |
| U948 | Valid for diesel engine 651 | 18E |
| U948 | Valid for diesel engine 651 | 18D |
| W15/1 | Right footwell ground point | 56E |
| W15/5 | Left front footwell ground point | 56F |
| X174/1 | Vehicle interior/front bumper electrical connector | 3F |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 53E |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 12A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 4A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 20A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 28A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 36A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 44A |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 52A |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 36F |
| Z35/20 | Chassis CAN high connector sleeve 1 | 53G |
| Z35/21 | Chassis CAN low connector sleeve 1 | 54G |
| Z36/17 | Rear sensor CAN (low) connector sleeve | 37G |
| Z36/19 | Rear sensor CAN (high) connector sleeve | 36G |
