| A0 |
Color code key |
15L |
| Code 930 |
Tachograph preinstallation |
9D |
| F4 |
Rear fuse box |
3L |
| F4f148 |
Fuse 148 |
2L |
| N10 |
SAM control unit |
7L |
| N10 |
SAM control unit |
13L |
| R3 |

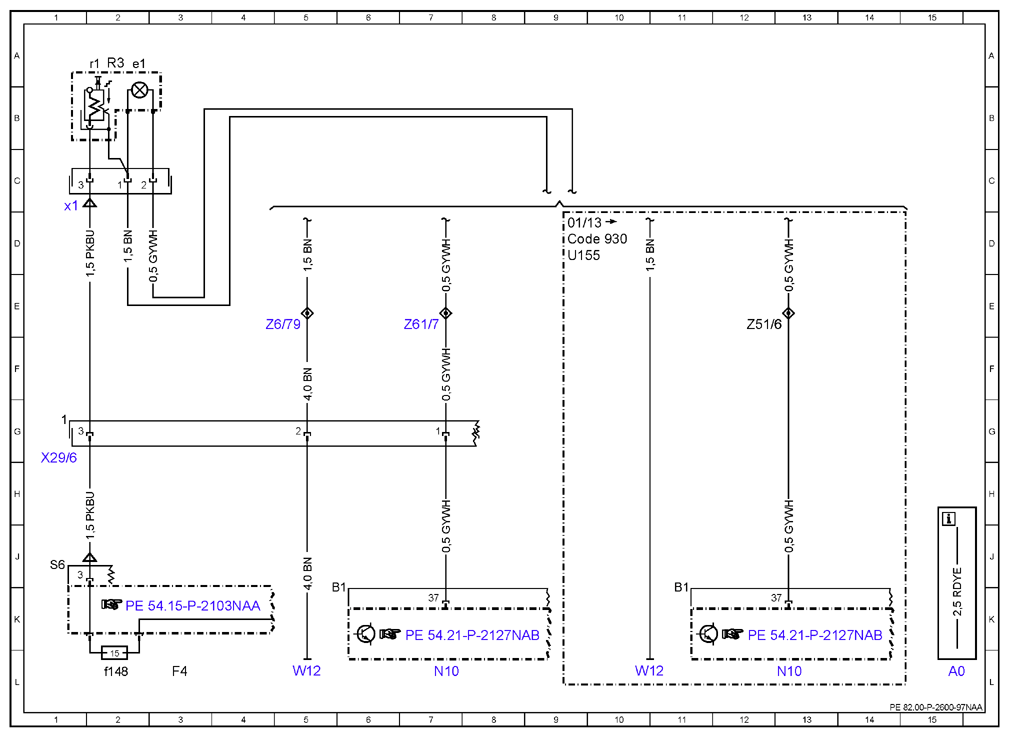

Front cigarette lighter with ashtray illumination |
2A |
| R3e1 |
Ashtray illumination |
2A |
| R3r1 |
Cigarette lighter heating element |
2A |
| R3x1 |
Electrical connector for cigarette lighter with ashtray illumination |
1C |
| U155 |
Valid for 166.8 |
9D |
| W12 |
Ground point (center console) |
5L |
| W12 |
Ground point (center console) |
10L |
| X29/6 |
Center console electrical connector |
1H |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
12E |
| Z6/79 |
Front center console circuit 31 connector sleeve |
5E |
| Z61/7 |
Wiring harness connector sleeve for center console, terminal 58d |
7E |
