Fuse assignment of prefuse box in engine compartment - GF54.15-P-1256-25GN
MODEL 166 as of model year 2016
MODEL 292

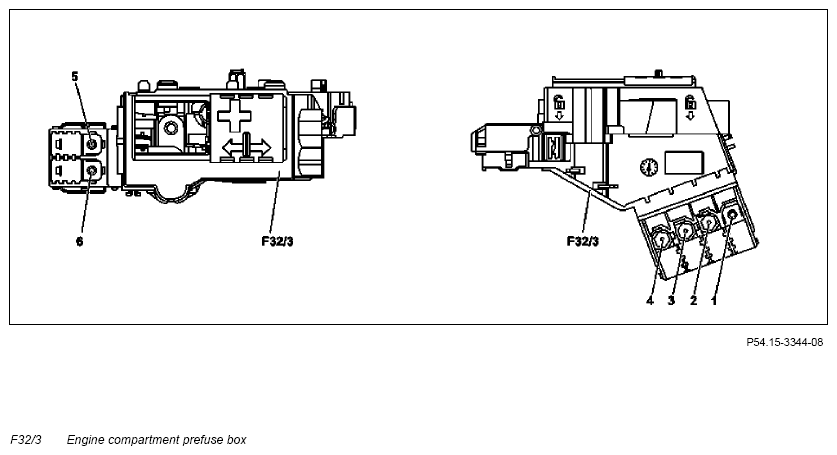

Fuse assignment of engine compartment prefuse box, viewed from top, side view
The designations 1 to 6 correspond to the fuses f1 to f6 below.
Fuses f7 and f8 are located within the plastic housing.
| Fuse | Terminal | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|
| f1 | 30 | 4.0 RDWH | Electronic Stability Program control unit (N30/4) | 40 |
| f2 | 30 | 6.0 RD | Fully integrated transmission control controller unit (Y3/8) (with CODE 421 (9G-TRONIC)) | 60 |
| f3 | 30 | 2.5 RDWH | Engine compartment fuse and relay module (F58) | 30 |
| f4 | - | - | Spare | - |
| f5 | 30 | 16.0 RD | Engine compartment fuse and relay module (F58) | 150 |
| f6 | 30 | 12.0 RD | Fan motor (M4/7) | 100 |
| f7 | 30 | 50.0 RD | Alternator (G2) | 400 |
| f8 | 30 | 12.0 RD | Electrical power steering control unit (N68) | 100 |
