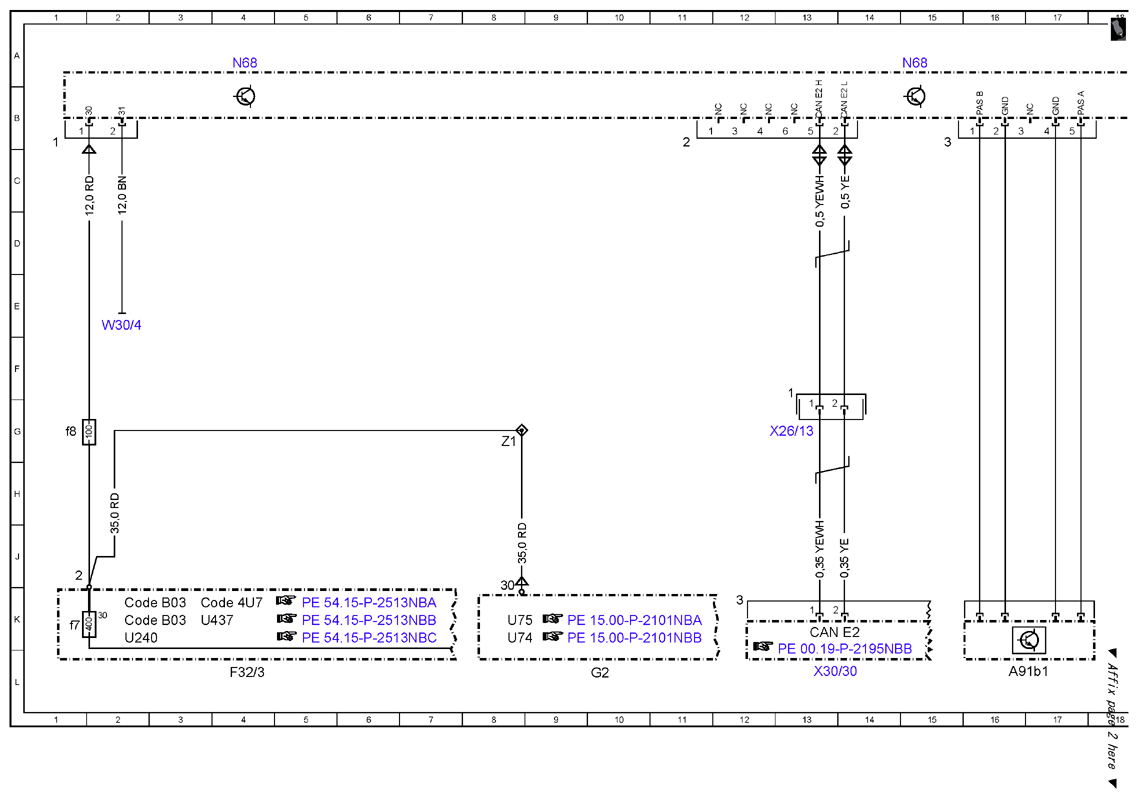

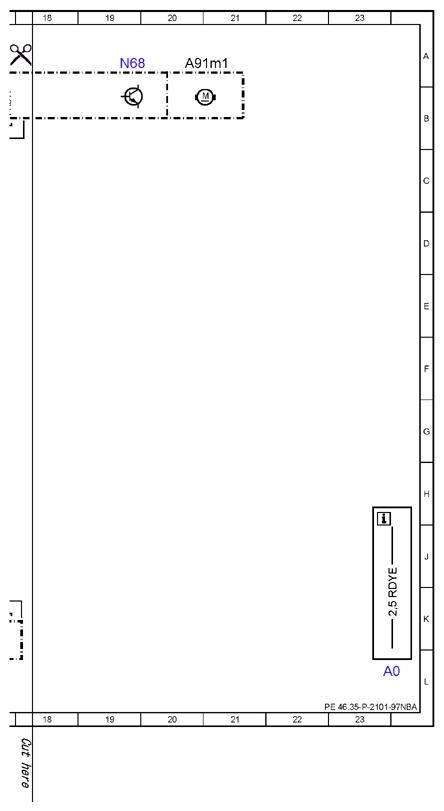

| A0 |
Color code key |
23L |
| A91b1 |
Electric power steering torque sensor |
16L |
| A91m1 |
Electric power steering actuator motor |
20A |
| CAN E2 |
Chassis CAN 2 |
13K |
| Code 4U7 |
Start/stop voltage dip protection |
3K |
| Code B03 |
ECO start/stop function |
2K |
| Code B03 |
ECO start/stop function |
2K |
| F32/3 |
Engine compartment prefuse box |
4L |
| F32/3f7 |
Fuse 7 |
1K |
| F32/3f8 |
Fuse 8 |
1G |
| G2 |
Alternator |
10L |
| N68 |
Electrical power steering control unit |
4A |
| N68 |
Electrical power steering control unit |
19A |
| N68 |
Electrical power steering control unit |
15A |
| U240 |
Valid for all except ECO start/stop function |
2K |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
3K |
| U74 |
Valid for diesel engines |
8K |
| U75 |
Valid for gasoline engines |
8K |
| W30/4 |
Power steering pump ground point |
2E |
| X26/13 |
Electric steering electrical connector |
13G |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
13L |
| Z1 |
Alternator connector sleeve |
8G |
