Remove/install air conditioner housing - AR83.30-P-5200GQ
MODEL 166
| Remove/install | |||
| 1 | Drain coolant at radiator | AR20.00-P-1142GQ | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Drain air conditioning system | AR83.30-P-1760CW | |
| 3 | Remove wiper system | AR82.30-P-6400GZ | |

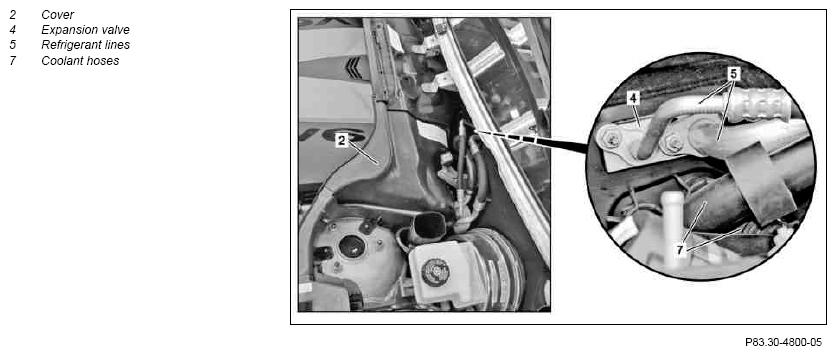

| 4 | Remove cover (2) | ||
| 5 | Detach refrigerant lines (5) from expansion valve (4) | ||
| 6 | Detach coolant hoses (7) to connection fitting of air conditioner housing (1) | ||
| 7 | Remove top part of dashboard | AR68.10-P-1020GQ | |
| 8 | Remove front right floor covering | AR68.20-P-2070GQ | |
| 9 | Remove cover below right front floor covering | ||

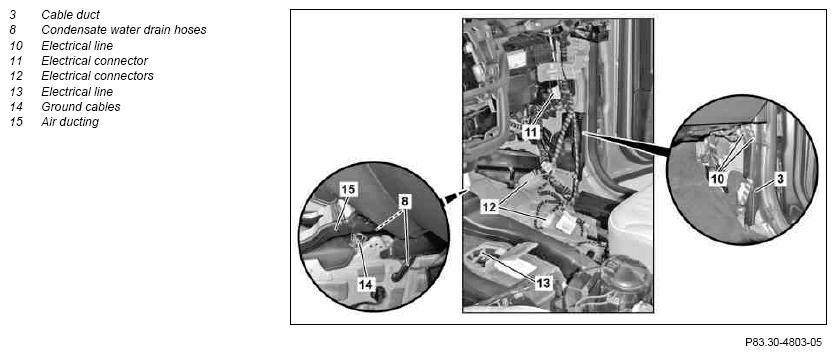

| 10 | Open cable duct (3) | ||
| 11 | Remove electrical lines (10) from cable duct (3) | ||
| 12 | Disconnect electrical connectors (12) | ||
| 13 | Disconnect electrical connector (11) from front SAM control unit | ||
| 14 | Disconnect electrical line (13) from Supplemental Restraint System control unit | ||
| 15 | Detach ground lines (14) from frame floor assembly | ||

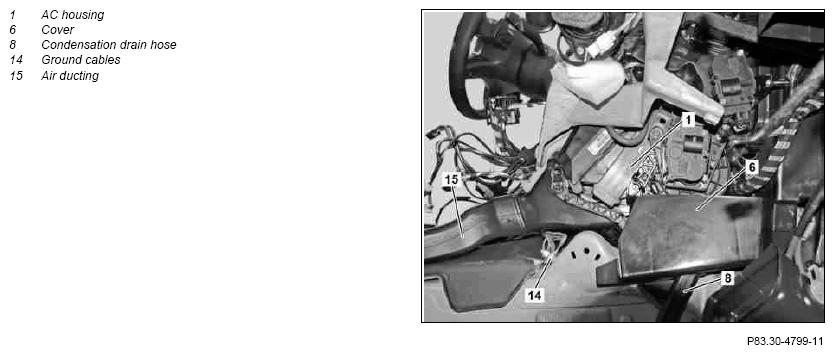

| 16 | Remove air ducting (15) | ||
| 17 | Remove cover (6) from air conditioner housing (1) | ||
| 18 | Detach condensation drain hoses (8) from frame floor assembly | ||
| 19 | Remove jacket tube | AR46.10-P-0400GQ | |
| 20 | Remove screws/bolts of instrument panel carrier | *BA68.10-P-1001-01B | |
| *BA68.10-P-1002-01B | |||
| *BA68.10-P-1003-01B | |||
| 21 | Remove air conditioner housing (1) and instrument panel carrier | ||
| 22 | Install in the reverse order |
DASHBOARD
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA68.10-P-1001-01B | Bolt, dashboard crossmember to firewall | Nm | 25 |
| BA68.10-P-1002-01B | Bolt, dashboard crossmember to A-pillar | Nm | 25 |
| BA68.10-P-1003-01B | Bolt, dashboard crossmember to transmission tunnel | Nm | 25 |
